The Air Hose with Braided Reinforcement is designed for the safe and efficient transfer of compressed air and other inert gases in industrial, construction, and automotive applications. Reinforced with a braided synthetic textile, this hose offers enhanced durability, flexibility, and resistance to pressure, making it ideal for various high-pressure air applications. Its robust construction ensures long-lasting performance even in demanding work environments.

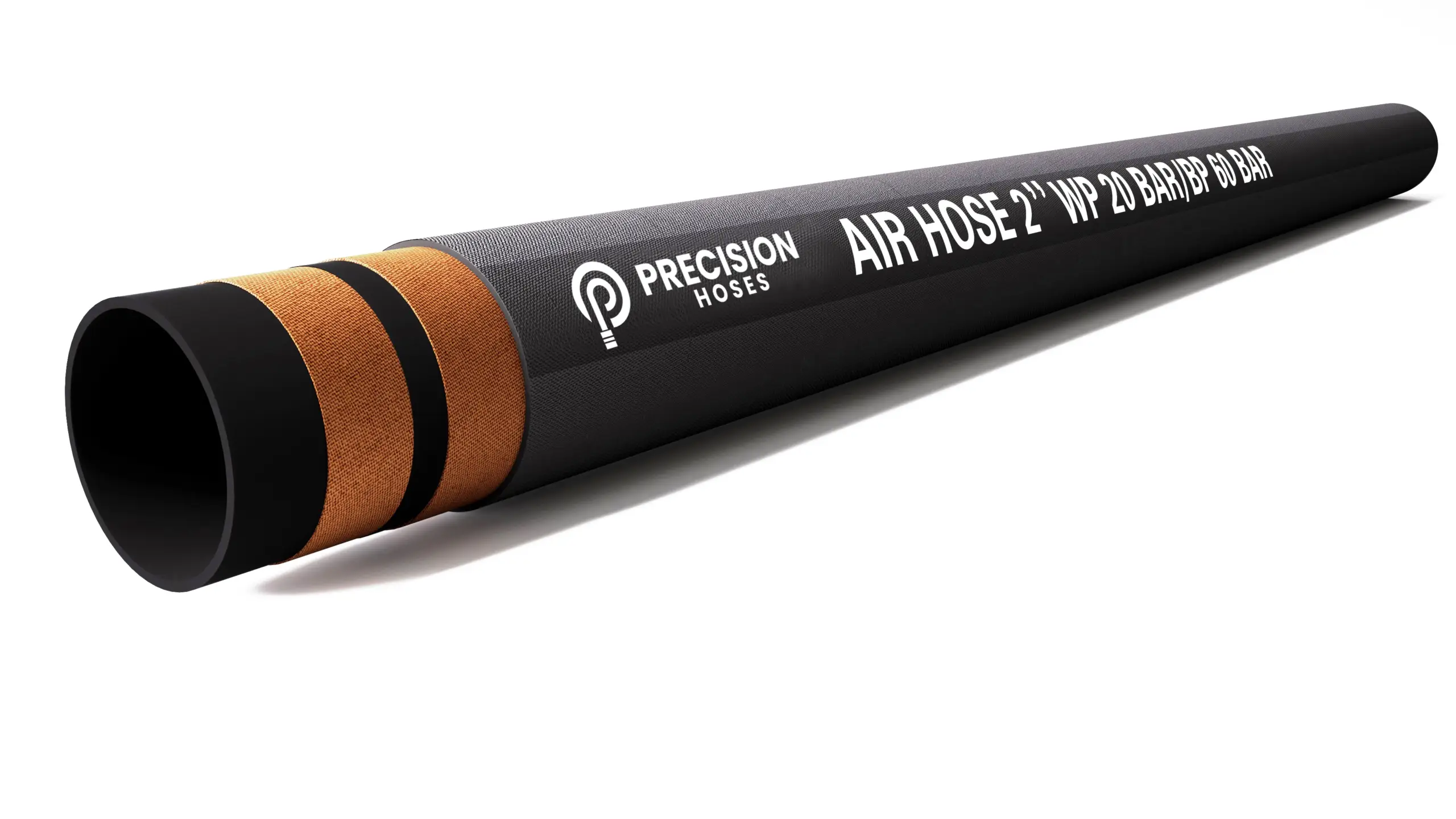

The Air Hose with Spiral Reinforcement is engineered for high-performance air transfer in heavy-duty industrial applications.

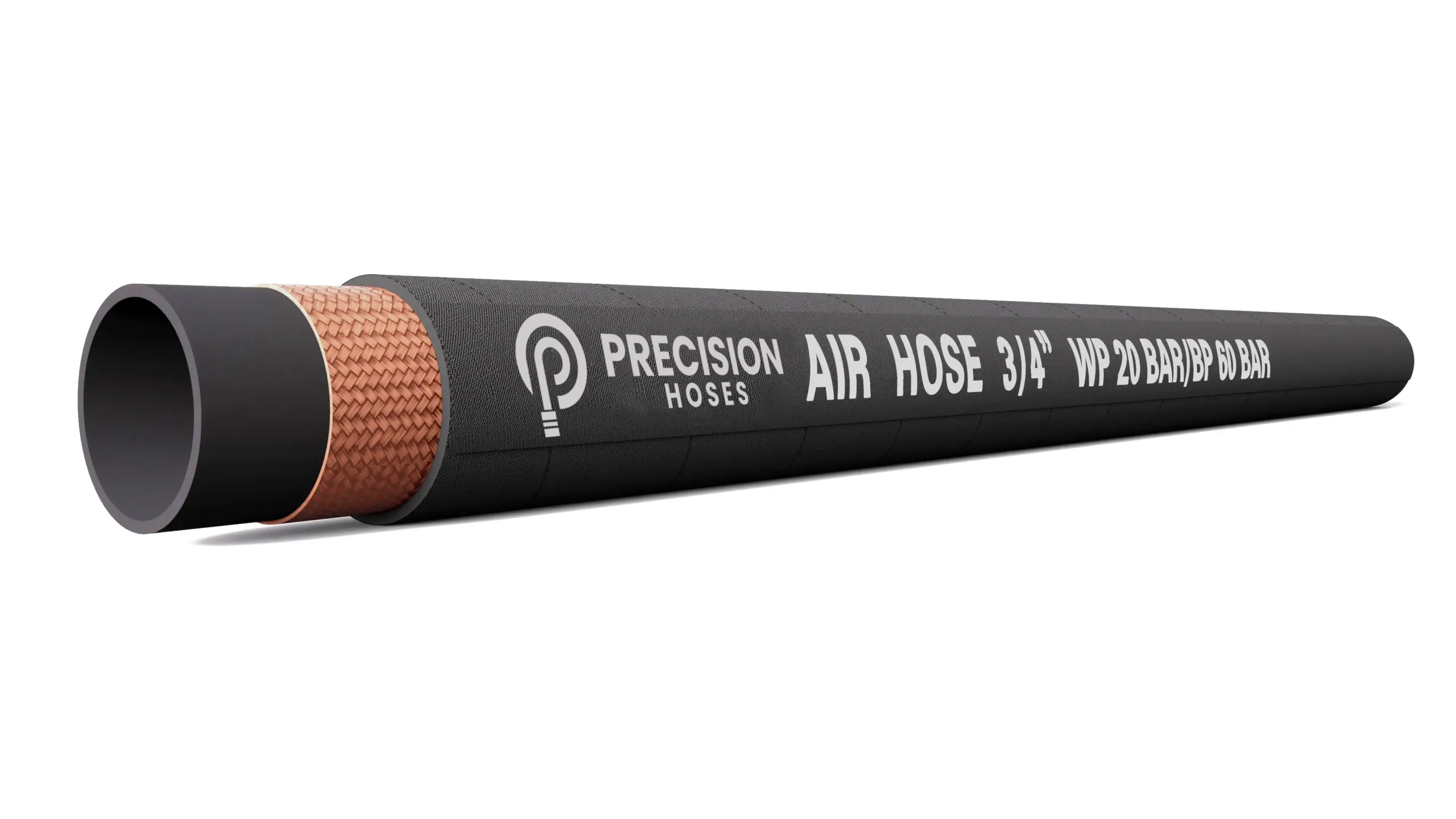

Air hose with braided reinforcement black

The Air Hose with Braided Reinforcement is a durable, high-pressure hose designed for the efficient transfer of compressed air in industrial, construction, and automotive applications. Reinforced with braided synthetic textile, it offers excellent strength, flexibility, and kink resistance. The abrasion-resistant outer cover ensures long-lasting performance, while the inner tube resists oil mist and maintains consistent airflow. Ideal for use with air compressors and pneumatic tools, this hose operates in a wide temperature range and handles high-pressure applications reliably. Suitable for various industrial environments, both indoors and outdoors.

Category: Tags: , , , , Product ID: 8000

Description

The Air Hose with Braided Reinforcement is designed for the safe and efficient transfer of compressed air and other inert gases in industrial, construction, and automotive applications. Reinforced with a braided synthetic textile, this hose offers enhanced durability, flexibility, and resistance to pressure, making it ideal for various high-pressure air applications. Its robust construction ensures long-lasting performance even in demanding work environments.

1. Construction

  • Inner Tube: Made from high-quality synthetic rubber, the inner tube is resistant to oil mist and ensures smooth airflow. It is designed to prevent air leakage and maintain consistent air pressure.
  • Reinforcement: Reinforced with a braided high-tensile synthetic textile, the hose can handle high-pressure applications while maintaining flexibility and kink resistance. This braided layer provides excellent strength and durability.
  • Outer Cover: The outer cover is made from abrasion-resistant synthetic rubber, designed to withstand tough industrial environments. It is resistant to weather, ozone, and general wear and tear, ensuring long-term use.

2. Standard Sizes

  • Inner Diameter: Typically available in a range of sizes, such as 1/4 inch (6mm), 3/8 inch (10mm), 1/2 inch (13mm), and larger, to meet various air transfer needs.
  • Length: Standard lengths range from 10 to 100 meters, depending on the application, with custom lengths available upon request.

3. Working Pressure

  • Designed for high-pressure air transfer, with working pressures typically ranging from 20 to 30 bars (290 to 435 psi), depending on the hose size and construction.

4. Burst Pressure

  • The hose has a high burst pressure rating, usually around 3 to 4 times the working pressure, ensuring safety in high-pressure environments.

5. Temperature Range

  • Operates effectively in a broad temperature range, typically from -30°C to 80°C (-22°F to 176°F), making it suitable for use in various climates and industrial settings.

6. End Fittings

  • Available with various standard fittings such as quick-connect couplings, threaded fittings, or crimped hose ends, ensuring secure and leak-free connections.
  • Custom fittings can be attached based on specific application needs.

7. Performance Characteristics

  • High-Pressure Handling: The braided reinforcement allows the hose to handle high-pressure air applications without risk of bursting or damage.
  • Flexibility: Despite its strength, the hose remains flexible, making it easy to handle and maneuver in tight spaces or around equipment.
  • Abrasion and Weather Resistance: The outer cover is designed to withstand harsh conditions, including rough surfaces, outdoor exposure, and UV radiation, ensuring durability.
  • Kink Resistance: The braided reinforcement prevents kinking, maintaining consistent airflow during use, even under heavy bending or flexing.
  • Oil and Chemical Resistance: The inner tube is resistant to oil mist and various chemicals, making the hose suitable for use with air compressors and pneumatic tools.

8. Applications

  • Ideal for use with air compressors, pneumatic tools, and air-operated equipment in industries such as construction, automotive repair, manufacturing, and mining.
  • Commonly used for air supply in construction sites, auto body shops, factories, and other settings where high-pressure air is needed.
  • Suitable for use in pneumatic systems for powering tools such as drills, grinders, and impact wrenches.
  • Frequently used in spray painting, sandblasting, and air-operated machinery operations.

9. Certifications

The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.

The Air Hose with Braided Reinforcement is a versatile and durable solution for handling compressed air in a wide range of industrial and construction applications. Its braided construction provides the strength needed for high-pressure tasks while maintaining flexibility and resistance to abrasion and weather, making it a dependable choice for both indoor and outdoor air transfer operations.

10. Available Sizes & Specifications

ITEM CODE I.D (mm) I.D (inch) O.D (mm) W.P (bar) W.P (psi) B.P (bar) B.P (psi) WEIGHT (kg/m) MAX LENGTH (m)
ADB006-300 6 1/4″ 14 20 300 60 900 0.17 100
ADB008-300 8 5/16″ 16 20 300 60 900 0.21 100
ADB010-300 10 3/8″ 18 20 300 60 900 0.24 100
ADB013-300 13 1/2″ 22 20 300 60 900 0.34 100
ADB016-300 16 5/8″ 26 20 300 60 900 0.46 100
ADB019-300 19 3/4″ 29 20 300 60 900 0.53 100
ADB022-300 22 7/8″ 34 20 300 60 900 0.65 100
ADB025-300 25 1″ 37 20 300 60 900 0.71 100



Note: Specifications, pressures, colours, etc., can be customized according to requirements.

Additional information

ADB006-300

I.D (mm): 6, I.D (inch): 1/4", O.D (mm): 14, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.17, MAX LENGTH (m): 100
ADB008-300

I.D (mm): 8, I.D (inch): 5/16", O.D (mm): 16, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.21, MAX LENGTH (m): 100
ADB010-300

I.D (mm): 10, I.D (inch): 3/8", O.D (mm): 18, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.24, MAX LENGTH (m): 100
ADB013-300

I.D (mm): 13, I.D (inch): 1/2", O.D (mm): 22, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.34, MAX LENGTH (m): 100
ADB016-300

.D (mm): 16, I.D (inch): 5/8", O.D (mm): 26, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.46, MAX LENGTH (m): 100
ADB019-300

I.D (mm): 19, I.D (inch): 3/4", O.D (mm): 29, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.53, MAX LENGTH (m): 100
ADB022-300

I.D (mm): 22, I.D (inch): 7/8", O.D (mm): 34, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.65, MAX LENGTH (m): 100
ADB025-300

I.D (mm): 25, I.D (inch): 1", O.D (mm): 37, W.P (bar): 20, W.P (psi): 300, B.P (bar): 60, B.P (psi): 900, WEIGHT (kg/m): 0.71, MAX LENGTH (m): 100
