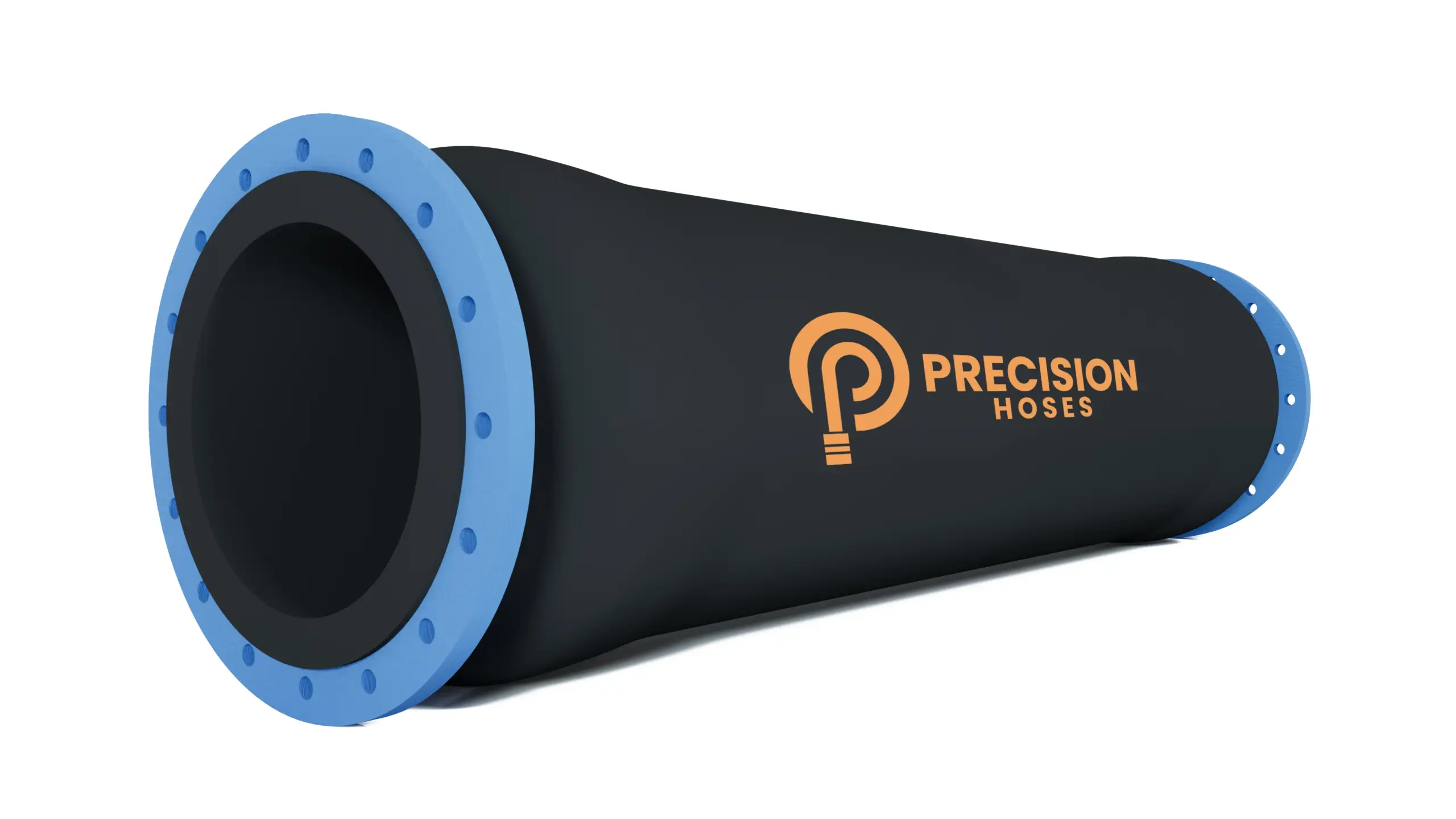

Discharge Dredge Hose

Discharge Dredge Hose

Our Discharge Dredge Hose is engineered to handle the efficient transfer of seawater, silt, sand, and other dredging materials during port and dock operations. Designed with exceptional durability and flexibility, this hose is essential for heavy-duty applications in marine environments, ensuring optimal performance and reliability.

Product Highlights

The discharge dredge hose is a critical tool for managing dredging projects. Its robust design provides excellent resistance to external damage, ensuring that it can withstand the rigours of harsh working conditions. Whether in rivers, harbours, or open seas, this hose guarantees smooth operation while minimising downtime.

Available Sizes

Our hoses are available in a variety of internal diameters (ID) to suit different requirements:

• 900 mm (34″)
• 500 mm (20″)
• 400 mm (16″)
• 300 mm (12″)
• 250 mm (10″)
• 200 mm (8″)
• 150 mm (6″)

Custom diameters and specific requirements are also available upon request to cater to unique project needs.

Key Components

Lining
The inner lining is made from high-strength synthetic rubber, offering excellent resistance to abrasion. Breaker plies are coated with premium-grade synthetic rubber to ensure strong adhesion to the hose carcass, extending its service life in challenging environments.

Reinforcement
Multiple layers of high-tensile reinforcing materials provide exceptional fatigue resistance. Steel wire coils are fully embedded within the hose to prevent kinking, crushing, and damage from concentrated loads.

Cover
The outer cover is crafted from synthetic rubber, ensuring resistance to abrasion, weathering, seawater, and oil exposure. It features an eye-catching orange spiral stripe for visibility or can be coated with a tough polyurethane layer for enhanced protection in demanding conditions.

Technical Specifications

• Working Temperature: Operates efficiently in a temperature range from -25°C to 80°C.
• Safety Factor: Built with a 3:1 safety ratio for added reliability and peace of mind in high-pressure applications.

Applications

This discharge dredge hose is versatile and ideal for a variety of operations, including:

• Dredging projects in ports and harbours.
• Transferring slurry, silt, and sand from one location to another.
• Dock and shoreline reclamation activities.
• Waterway maintenance and marine construction projects.

Why Choose Our Discharge Dredge Hose?

1. Durability: Designed to withstand harsh physical conditions and prolonged use.
2. Customisation: Available in multiple sizes with the option for custom dimensions.
3. Efficiency: Ensures smooth discharge operations, reducing downtime.
4. Weather Resistance: Engineered to endure tough marine environments, including UV exposure and saltwater corrosion.

For all your dredging needs, our Discharge Dredge Hose stands out as a reliable and efficient solution. Contact us today to learn more or request custom options to suit your project!
