Description

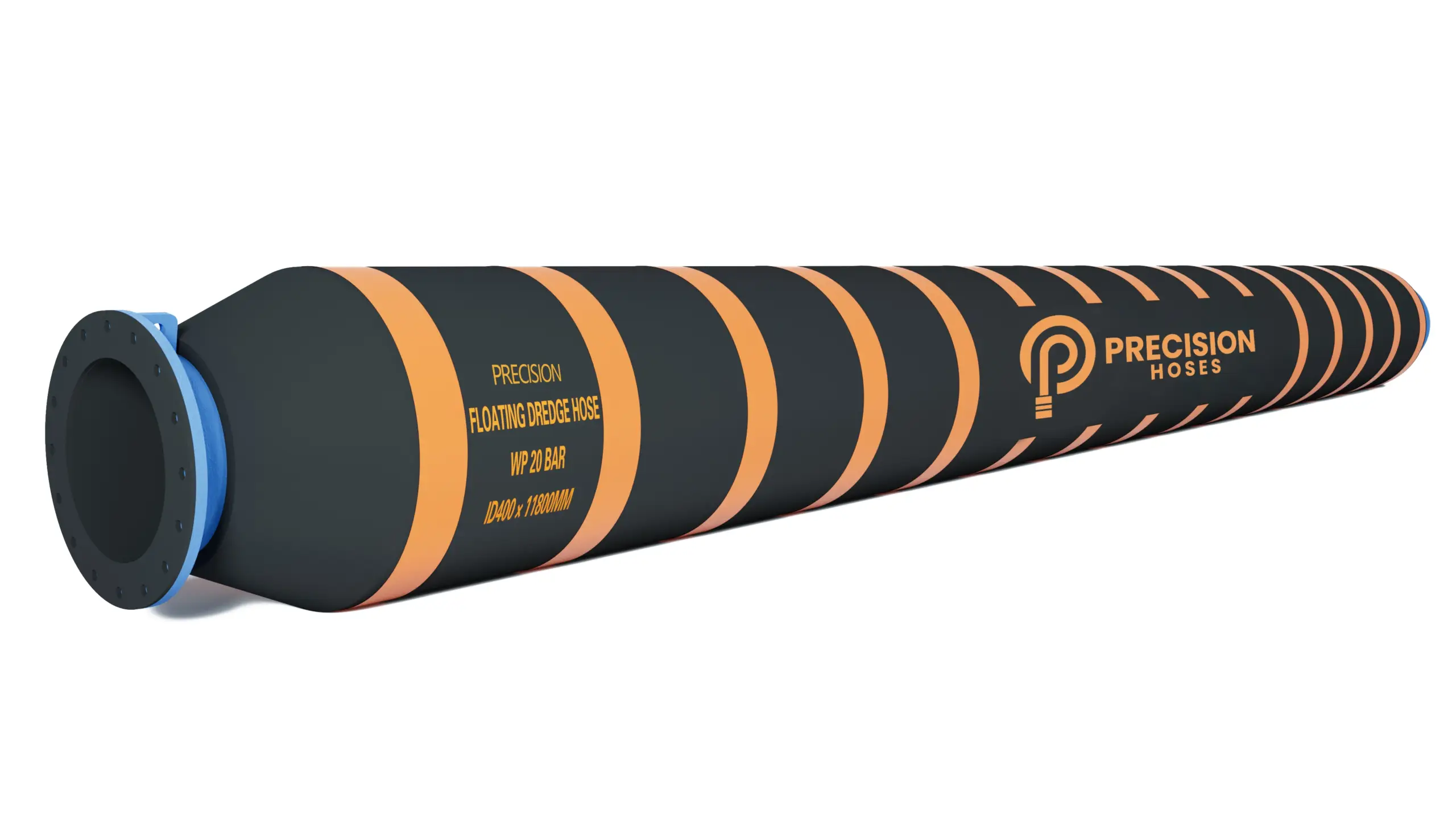

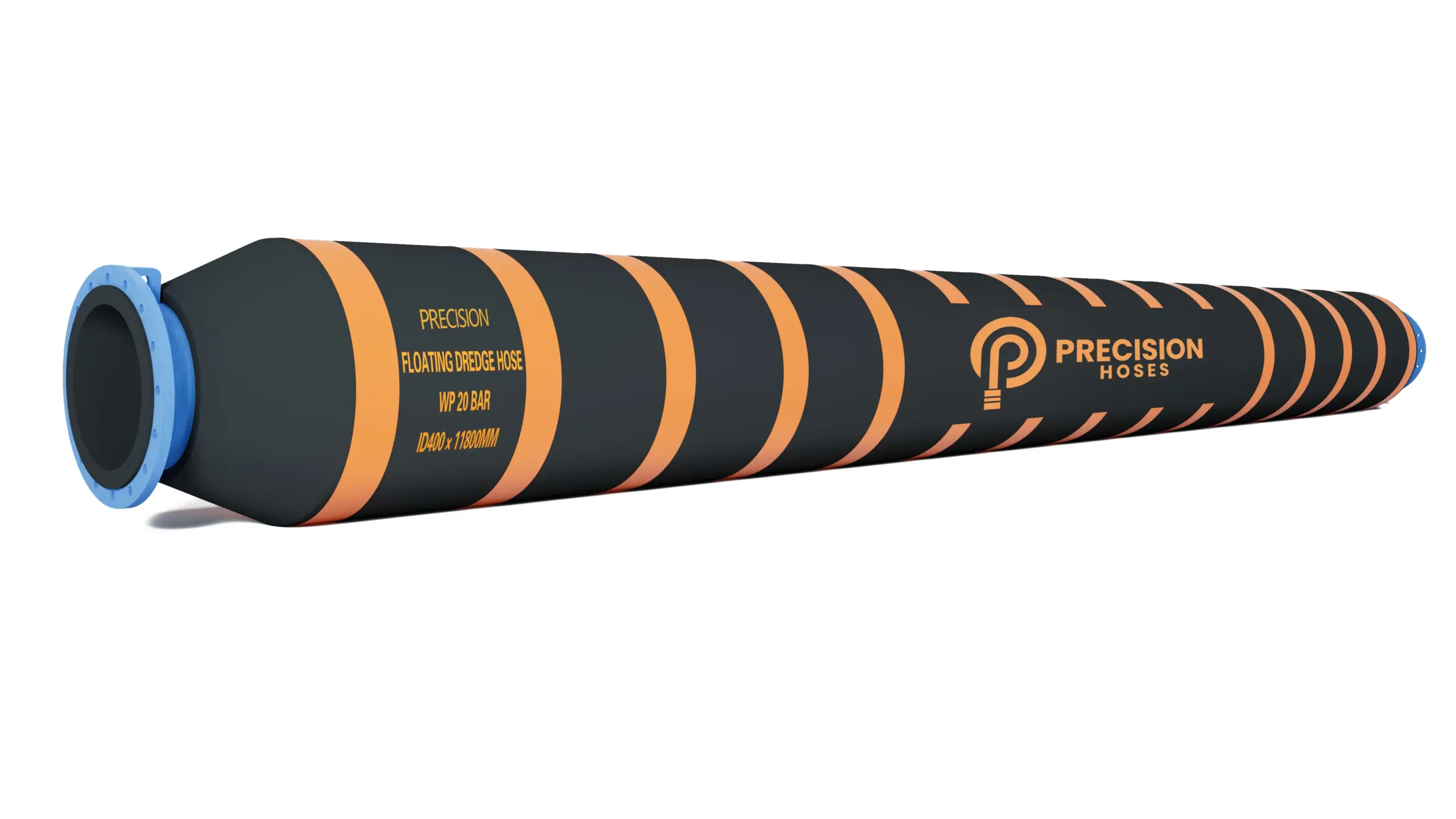

Our floating dredge hoses are expertly crafted for efficient discharge of seawater, silt, sand, and other dredging materials in ports and docks. These hoses play a crucial role in the construction and maintenance of water-based infrastructure.
Key Specifications
- Inner lining: Natural rubber combined with EPDM for enhanced durability
- Reinforcement: High-strength braided textile cord
- Floatation layer: Closed-cell PE foam for buoyancy
- Outer cover: EPDM and SBR rubber blend for weather resistance
- Operational temperature range: -20°C to 80°C
- Safety ratio: 3:1
- Appearance: Black with an orange circumferential stripe
Applications
These floating dredge hoses are extensively used in dredging operations to clear sediments, sludge, and other debris from rivers, lakes, and harbours. Their robust construction ensures excellent load capacity, resistance to corrosion, and prolonged service life, making them a cost-effective solution for hydraulic engineering projects.
Distinct Features
The outer layer is built to withstand harsh weather, UV radiation, and ozone exposure. It includes wear indicator layers for added safety when transporting abrasive substances. The foam layer ensures buoyancy, keeping at least 20% of the hose volume above water to prevent submersion.
Available Sizes & Specifications
| ID (mm) | ID (inch) | WP (bar) | LENGTH (m) |
|---|---|---|---|
| 200 | 8 | 10~20 | 11.8 |
| 250 | 10 | 10~20 | 11.8 |
| 300 | 12 | 10~20 | 11.8 |
| 350 | 14 | 10~20 | 11.8 |
| 400 | 16 | 10~20 | 11.8 |
| 450 | 18 | 10~20 | 11.8 |
| 500 | 20 | 10~20 | 11.8 |
| 600 | 24 | 10~20 | 11.8 |
| 800 | 32 | 10~20 | 11.8 |
| 1100 | 44 | 10~20 | 11.8 |
Note: Specifications, pressures, colours, etc., can be customized according to requirements.
