Description
The Hydraulic Oil Discharge Hose is specifically designed for the safe and efficient transfer of hydraulic oils and other petroleum-based fluids under medium to high pressure. This hose is commonly used in industrial machinery, hydraulic systems, and construction equipment where hydraulic oil needs to be discharged or transferred efficiently. Its construction ensures excellent durability, flexibility, and performance under demanding conditions.

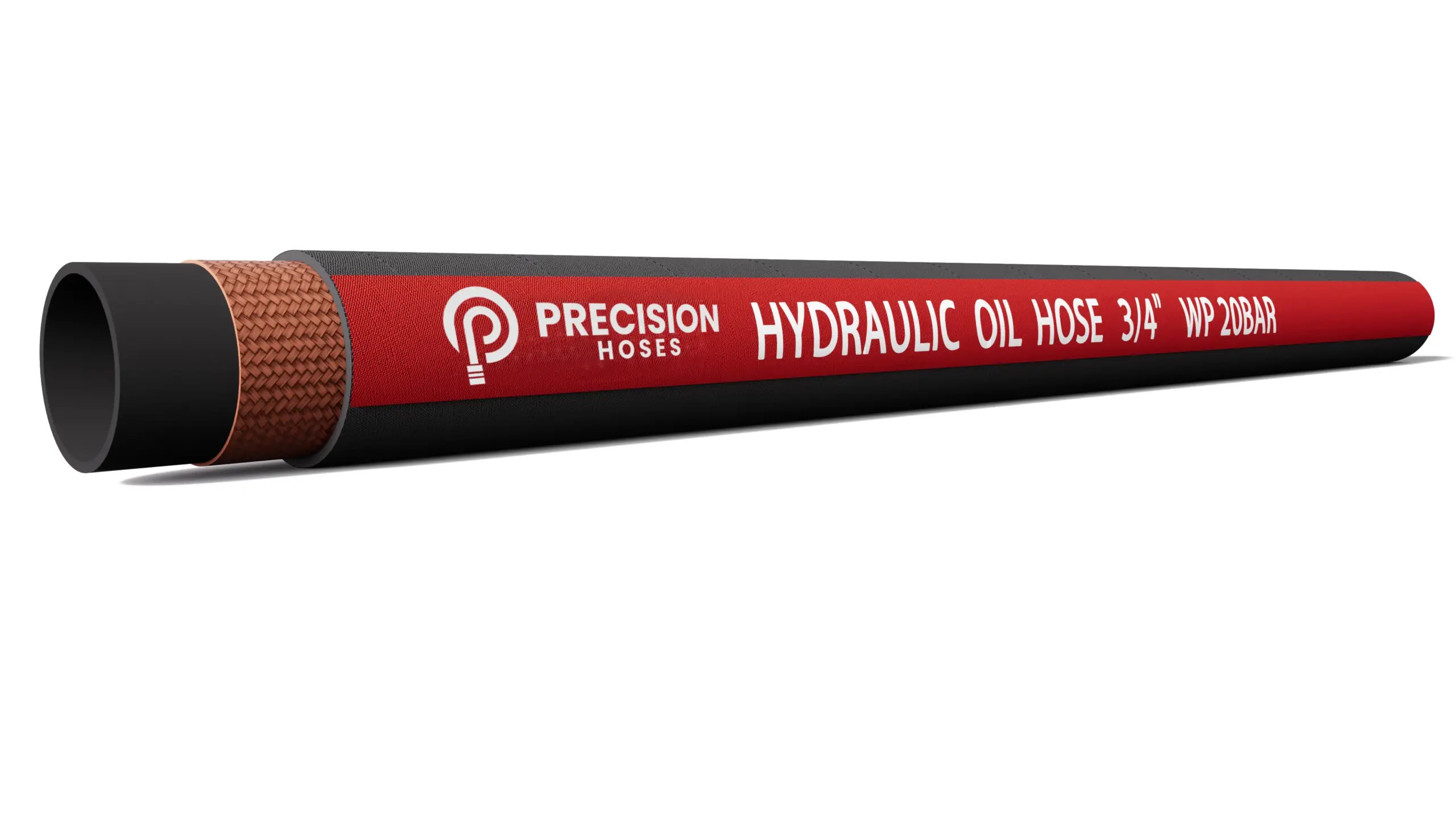

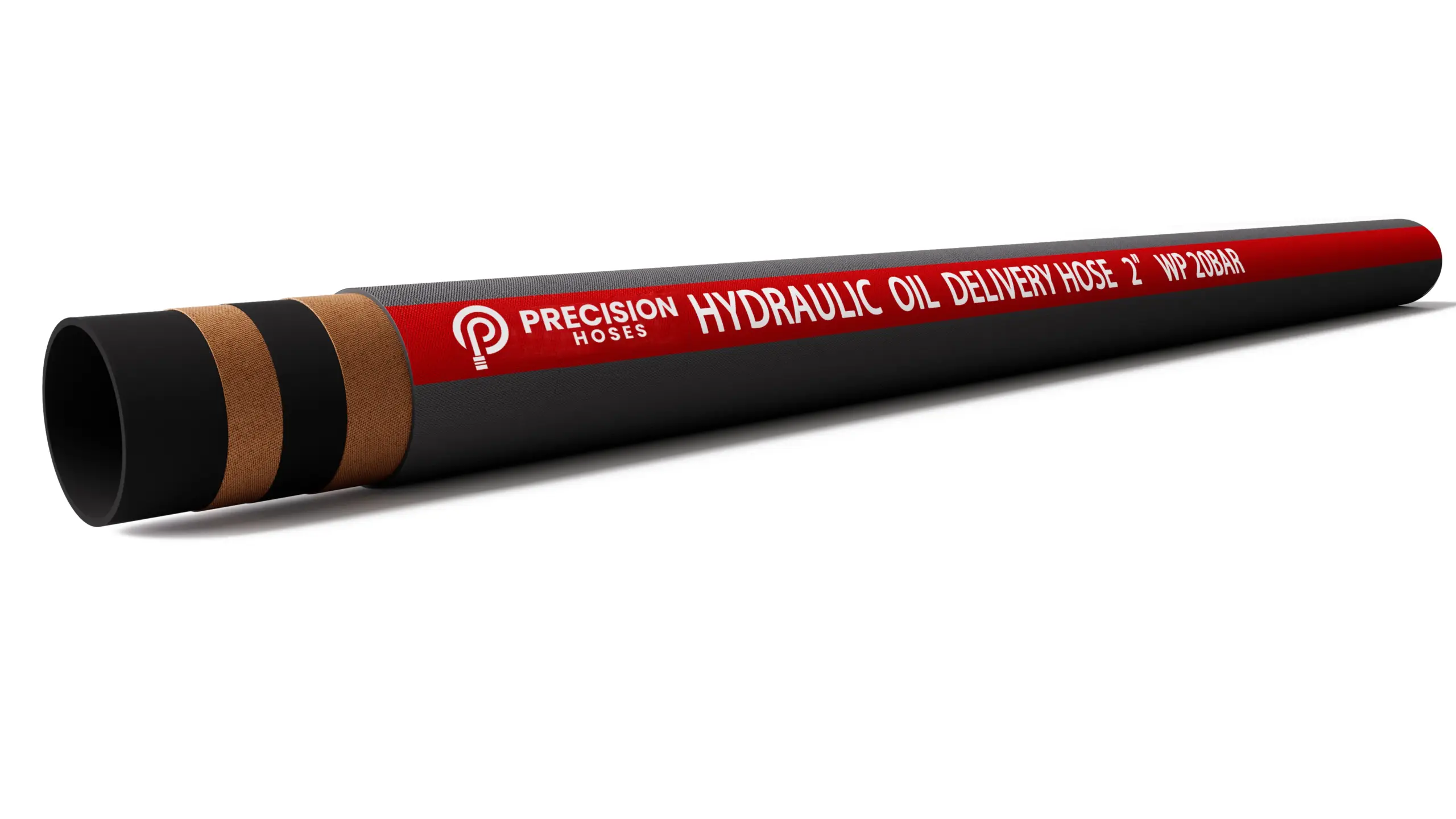

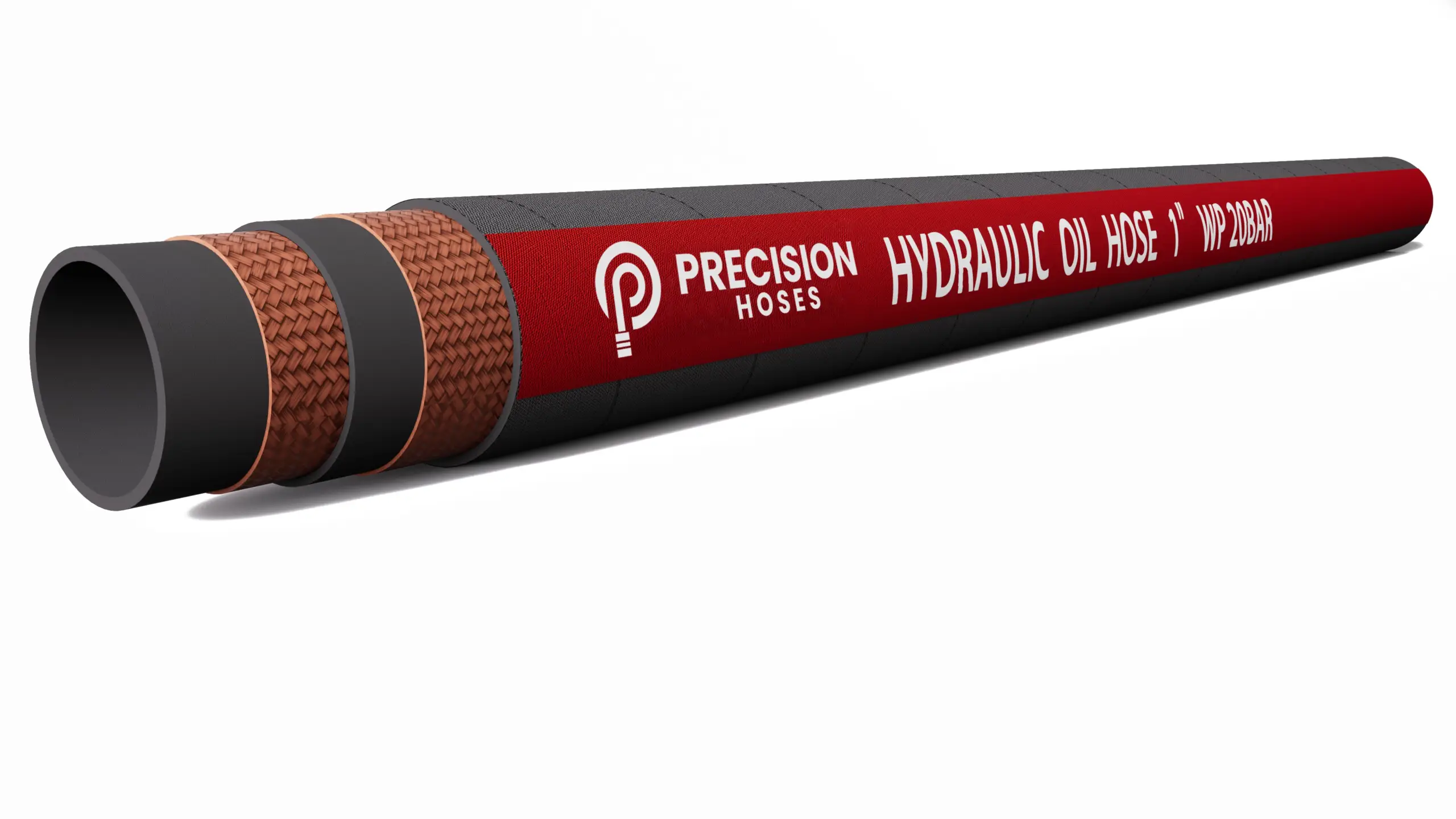

1. Construction
- Inner Tube: The inner tube is made from high-quality nitrile rubber (NBR) or synthetic rubber, which is highly resistant to hydraulic oils, lubricants, and petroleum-based fluids. The smooth inner surface promotes optimal flow and minimizes turbulence during the discharge process.
- Reinforcement: The hose is reinforced with synthetic textile plies and/or steel wire, providing excellent strength, flexibility, and resistance to high-pressure hydraulic operations. This reinforcement prevents the hose from bursting under pressure and ensures long-lasting performance.
- Outer Cover: The outer cover is made from abrasion-resistant synthetic rubber, designed to resist weathering, ozone, and oil. This ensures the hose remains durable even when exposed to harsh environmental conditions and rough handling.
2. Standard Sizes
- Inner Diameter: Typically available in sizes ranging from 1/2 inch (12.5mm) to 4 inches (100mm), depending on the specific application and the volume of hydraulic oil to be discharged.
- Length: Standard lengths usually range from 10 to 50 meters, with custom lengths available for specific industrial requirements.
3. Working Pressure
- The hose is designed for medium to high-pressure applications, with working pressure ratings typically ranging from 10 to 25 bars (145 to 362 psi), depending on the hose diameter and reinforcement.
4. Temperature Range
- The hose is suitable for a wide temperature range, typically from -20°C to 100°C (-4°F to 212°F), making it ideal for use in various hydraulic systems and under different environmental conditions.
5. Performance Characteristics
- Oil Resistance: The nitrile rubber inner tube is highly resistant to hydraulic oils, ensuring that it does not degrade or swell during use.
- Durability and Flexibility: The reinforced construction allows the hose to remain flexible while maintaining its strength under high-pressure operations.
- Abrasion and Weather Resistance: The outer cover provides excellent resistance to wear and tear, protecting the hose from environmental damage and extending its service life.
- Pressure Resistance: Designed to handle high-pressure hydraulic oil discharge, the hose ensures reliable performance without risk of bursting or leaking.
6. Applications
- Commonly used in hydraulic systems for oil transfer and discharge in industrial machinery, construction equipment, and heavy-duty vehicles.
- Suitable for use in mobile hydraulic systems, including construction equipment, agricultural machinery, and transport vehicles.
- Ideal for maintenance operations in hydraulic machines that require oil draining and discharge.
7. End Fittings
- Compatible with a variety of fittings such as threaded fittings, quick-connect couplings, or flanged fittings, allowing secure connections to hydraulic systems, pumps, and tanks.
8. Certifications
The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.
The Hydraulic Oil Discharge Hose is designed to provide efficient and reliable performance in hydraulic oil discharge applications. With its durable construction, resistance to hydraulic fluids, and ability to handle high pressure, it is a dependable solution for industrial, construction, and mechanical operations.
Available Sizes
Working Pressure: 150 PSI
| ITEM CODE | I.D. (mm) | I.D. (inch) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | WEIGHT (kg/m) | MAX LENGTH (m) |
|---|---|---|---|---|---|---|---|---|---|
| HOD019-150 | 19 | 3/4″ | 30.4 | 10 | 150 | 30 | 450 | 0.62 | 61 |
| HOD025-150 | 25 | 1″ | 36.4 | 10 | 150 | 30 | 450 | 0.77 | 61 |
| HOD032-150 | 32 | 1-1/4″ | 43.8 | 10 | 150 | 30 | 450 | 0.95 | 61 |
| HOD038-150 | 38 | 1-1/2″ | 50.8 | 10 | 150 | 30 | 450 | 1.21 | 61 |
| HOD045-150 | 45 | 1-3/4″ | 57.8 | 10 | 150 | 30 | 450 | 1.40 | 61 |
| HOD051-150 | 51 | 2″ | 63.8 | 10 | 150 | 30 | 450 | 1.56 | 61 |
| HOD064-150 | 64 | 2-1/2″ | 77.8 | 10 | 150 | 30 | 450 | 2.19 | 61 |
| HOD076-150 | 76 | 3″ | 89.8 | 10 | 150 | 30 | 450 | 2.56 | 61 |
| HOD089-150 | 89 | 3-1/2″ | 102.8 | 10 | 150 | 30 | 450 | 2.95 | 61 |
| HOD102-150 | 102 | 4″ | 116.6 | 10 | 150 | 30 | 450 | 3.34 | 61 |
Working Pressure: 300 PSI
| ITEM CODE | I.D. (mm) | I.D. (inch) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | WEIGHT (kg/m) | MAX LENGTH (m) |
|---|---|---|---|---|---|---|---|---|---|
| AD019-300 | 19 | 3/4″ | 30.4 | 20 | 300 | 60 | 900 | 0.62 | 61 |
| AD025-300 | 25 | 1″ | 36.8 | 20 | 300 | 60 | 900 | 0.77 | 61 |
| AD032-300 | 32 | 1-1/4″ | 45.8 | 20 | 300 | 60 | 900 | 1.20 | 61 |
| AD038-300 | 38 | 1-1/2″ | 51.8 | 20 | 300 | 60 | 900 | 1.39 | 61 |
| AD045-300 | 45 | 1-3/4″ | 58.8 | 20 | 300 | 60 | 900 | 1.60 | 61 |
| AD051-300 | 51 | 2″ | 64.8 | 20 | 300 | 60 | 900 | 1.79 | 61 |
| AD064-300 | 64 | 2-1/2″ | 78.6 | 20 | 300 | 60 | 900 | 2.19 | 61 |
| AD076-300 | 76 | 3″ | 91.4 | 20 | 300 | 60 | 900 | 2.75 | 61 |
| AD089-300 | 89 | 3-1/2″ | 106.4 | 20 | 300 | 60 | 900 | 3.53 | 61 |
| AD102-300 | 102 | 4″ | 119.4 | 20 | 300 | 60 | 900 | 4.00 | 61 |
Note: Specifications, pressures, colours, etc., can be customized according to requirements.
