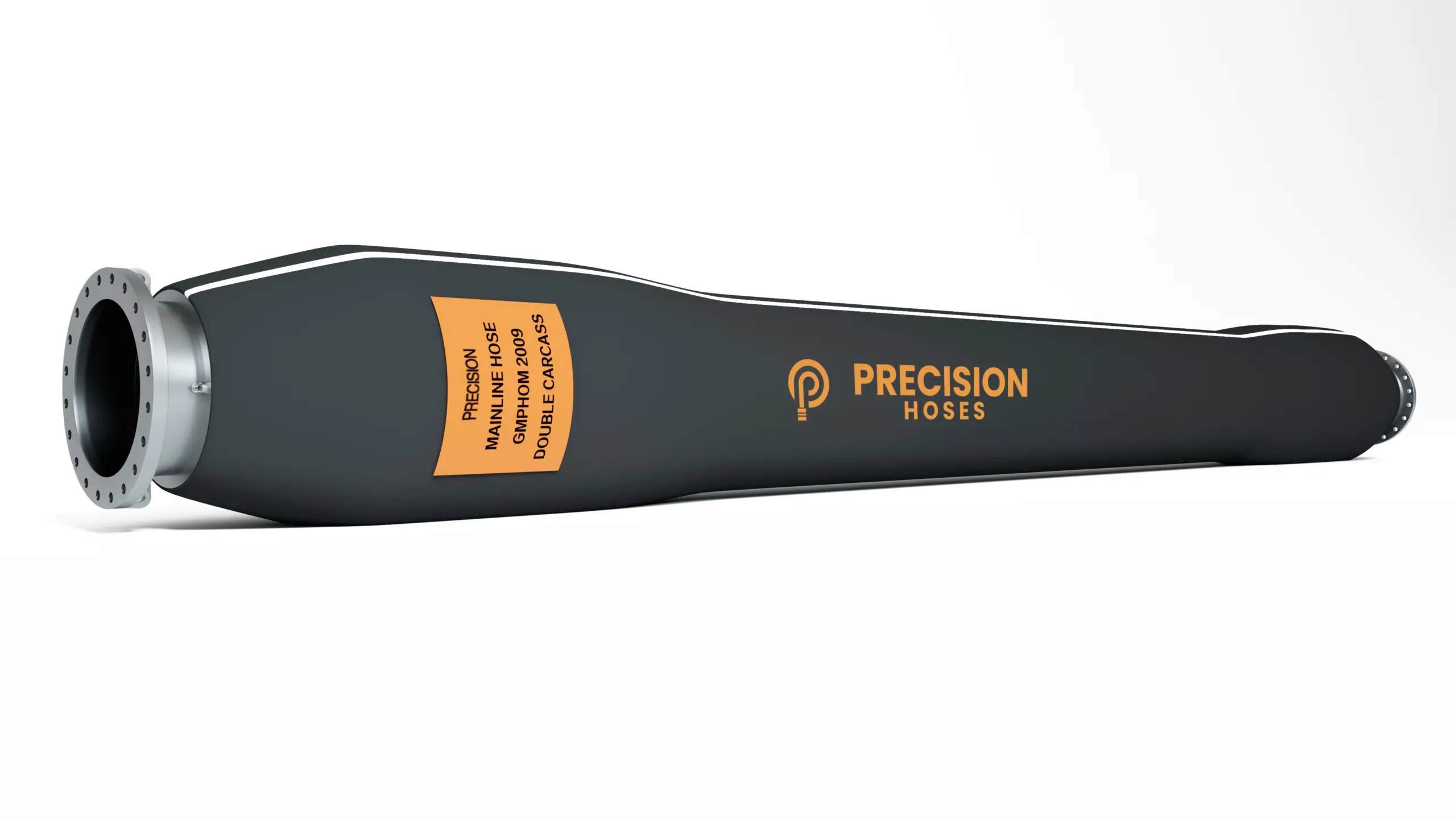

Mainline Submarine Hose without Collars

Description

The Mainline Submarine Hose without Collars is a specialized hose used in offshore oil and gas transfer operations, designed for submerged applications. This hose connects floating hose strings to subsea pipelines, providing a flexible and durable solution for transporting crude oil, refined products, and other petrochemicals in deep-sea environments.

1. Construction

• Inner Liner: Made from oil-resistant synthetic rubber or composite materials that ensure compatibility with crude oil and refined products, maintaining integrity under various conditions.
• Reinforcement Layers: Constructed with multiple layers of high-tensile synthetic fibres or steel wire, providing the necessary strength and flexibility to handle high-pressure applications while resisting external forces.
• Outer Cover: Features an abrasion-resistant outer layer made of synthetic rubber, offering protection against seawater, physical wear, and environmental factors commonly found in offshore settings.

2. Design Features

• No Collars: Unlike collar-equipped hoses, this design allows for greater flexibility and ease of handling. The absence of collars reduces weight and potential stress points, making it suitable for certain applications where buoyancy control is less critical.
• Buoyancy Control: Designed to achieve neutral buoyancy, the hose can float or remain submerged depending on operational requirements, allowing for adaptability in different offshore conditions.

3. Standard Sizes

• Inner Diameter: Typically available in diameters ranging from 6 inches (150mm) to 24 inches (600mm), depending on the specific application and system requirements.
• Length: Standard lengths are generally around 12 meters, with custom lengths available upon request.

4. Working Pressure

• Rated to handle working pressures typically ranging from 10 to 20 bars (145 to 290 psi), ensuring reliability during oil transfer operations under pressure.

5. Temperature Range

• Suitable for operation in temperature ranges from -20°C to 80°C, allowing for use in various offshore climates and conditions.

6. End Fittings

• Equipped with flanged or swivel-type end fittings made from corrosion-resistant materials, such as stainless steel or galvanized metal. These fittings ensure secure connections between hoses and subsea pipelines or floating buoys.
• Generally compliant with OCIMF (Oil Companies International Marine Forum) standards, ensuring safety and compatibility in marine oil transfer operations.

7. Performance Characteristics

• Tensile Strength: Built to withstand significant tensile loads encountered during offshore oil transfer, particularly in dynamic underwater conditions.
• Flexibility: Maintains excellent flexibility, allowing it to adapt to movement caused by waves, currents, and other marine factors.
• Abrasion Resistance: The robust outer cover protects against damage from seabed contact and other environmental hazards, ensuring longevity in challenging conditions.

8. Applications

• Primarily used in offshore oil transfer systems, especially in Single Point Mooring (SPM) or Conventional Buoy Mooring (CBM) operations.
• Ideal for submerged hose strings that connect floating buoys to subsea pipelines for transferring crude oil or refined products.

9. Certifications

The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.

The Mainline Submarine Hose without Collars offers a flexible and robust solution for offshore oil transfer, providing reliability and durability in submerged environments while maintaining adaptability to various operational needs.



Available sizes:

Mainline Submarine Hose without Collars



Note: Specifications, pressures, colours, etc. can be customized according to requirements.
