Material Discharge Hose

Description

The Material Discharge Hose is designed for the efficient transfer and discharge of abrasive materials such as sand, gravel, cement, dry bulk, and other industrial solids. It is commonly used in construction, mining, and other heavy-duty material handling operations. Built for durability and flexibility, this hose can withstand the rough handling and wear associated with abrasive material transfer.

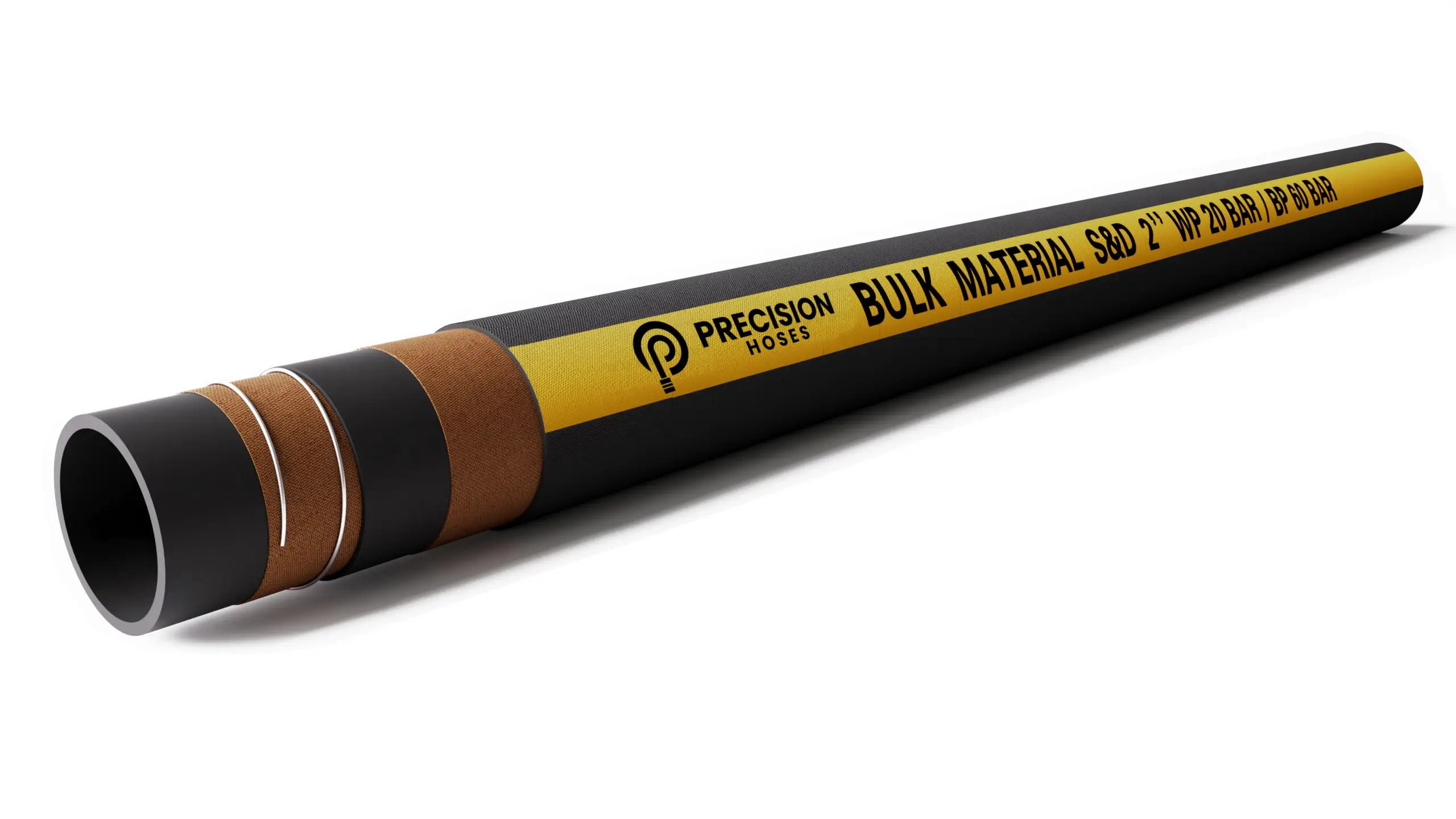

1. Construction

• Inner Tube: Made from high-quality synthetic rubber (SBR or NR), which provides excellent abrasion resistance and wear protection. The inner tube ensures the hose can handle abrasive materials without degrading quickly, ensuring smooth and consistent material flow.
• Reinforcement: Reinforced with layers of high-tensile synthetic textile plies or steel wire helix (depending on the application) to provide strength and prevent the hose from collapsing or kinking during discharge operations. This reinforcement allows the hose to handle high-pressure applications and rough use.
• Outer Cover: The outer cover is made from weather-, ozone-, and abrasion-resistant synthetic rubber, offering protection against external wear and environmental conditions, such as UV exposure, rough handling, and outdoor use.

2. Standard Sizes

• Inner Diameter: Typically available in sizes ranging from 1 inch (25mm) to 12 inches (300mm), depending on the specific application and material handling requirements.
• Length: Standard lengths vary, typically available in 10 to 40 meters, with custom lengths offered depending on the operational needs.

3. Working Pressure

• The hose is designed for medium- to high-pressure applications, with working pressures typically ranging from 5 to 15 bars (72 to 217 psi), depending on the hose size and construction.
• Burst Pressure: The burst pressure is usually 3 times the working pressure, ensuring reliability and safety under tough conditions.

4. Abrasion Resistance

• The inner tube is highly resistant to abrasion, making it ideal for the discharge of abrasive materials like sand, cement, gravel, and slurry. This wear resistance helps extend the lifespan of the hose, reducing the need for frequent replacements.

5. Temperature Range

• The hose can operate effectively within a wide temperature range, from -20°C to 80°C (-4°F to 176°F), making it suitable for a variety of working environments and weather conditions.

6. Performance Characteristics

• Abrasion Resistance: The synthetic rubber inner tube provides excellent resistance to wear and abrasion, even when used for transferring highly abrasive materials like sand or gravel.
• Flexibility: The hose remains flexible, allowing for easy handling and installation, even in tight or difficult spaces.
• Durability: The combination of a wear-resistant inner tube and a tough outer cover ensures the hose’s long-lasting performance, even in harsh, abrasive environments.
• Efficient Material Flow: The smooth inner tube minimizes friction, ensuring efficient discharge of materials without clogging or slowdowns.

7. Applications

• Bulk material handling, especially in construction sites, quarries, and mining operations, where sand, gravel, cement, or other abrasive materials need to be transferred.
• Used in dredging operations for discharging slurry or sediment.
• Ideal for dry bulk transfer and hopper discharge systems where materials are moved from storage or holding tanks to conveyor belts or trucks.
• Commonly used in cement factories, ready-mix plants, and other industrial settings requiring the movement of coarse materials.

8. End Fittings

• The hose can be equipped with various types of end fittings, such as flanged couplings, quick-connect fittings, or camlock couplings, depending on the specific requirements. These fittings are typically made from durable, corrosion-resistant metals like steel or aluminum, ensuring secure and leak-proof connections.

9. Certifications

The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.

The Material Discharge Hose is a durable, abrasion-resistant hose built for the transfer and discharge of abrasive materials in heavy-duty industrial applications. Its robust construction ensures reliable performance and long-lasting service, making it ideal for use in construction, mining, and material handling operations.



10. Available Sizes

Specifications for 150 psi Working Pressure

Specifications for 300 psi Working Pressure



Note: Custom sizes and lengths are available upon request to meet your specific needs.
