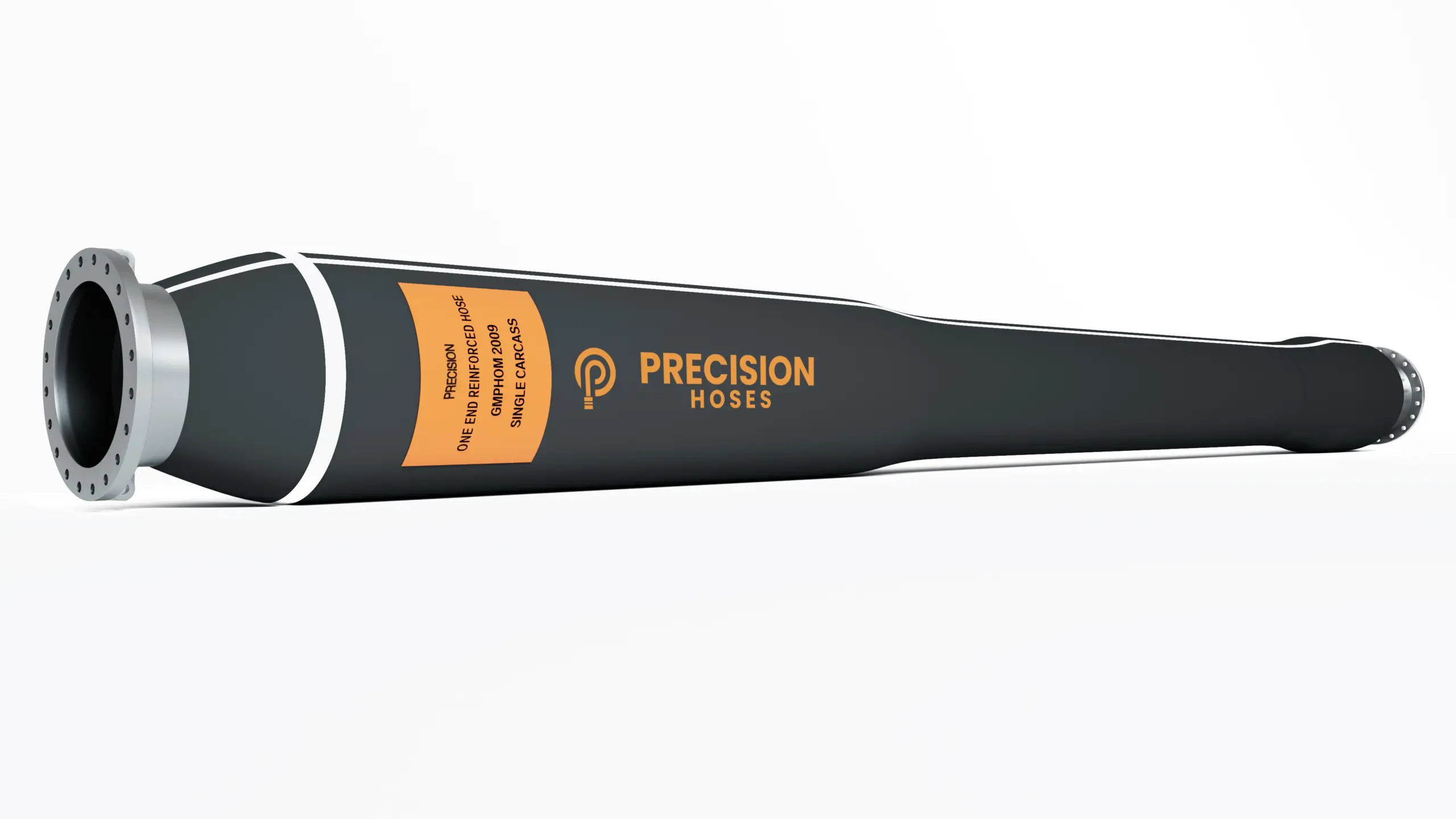

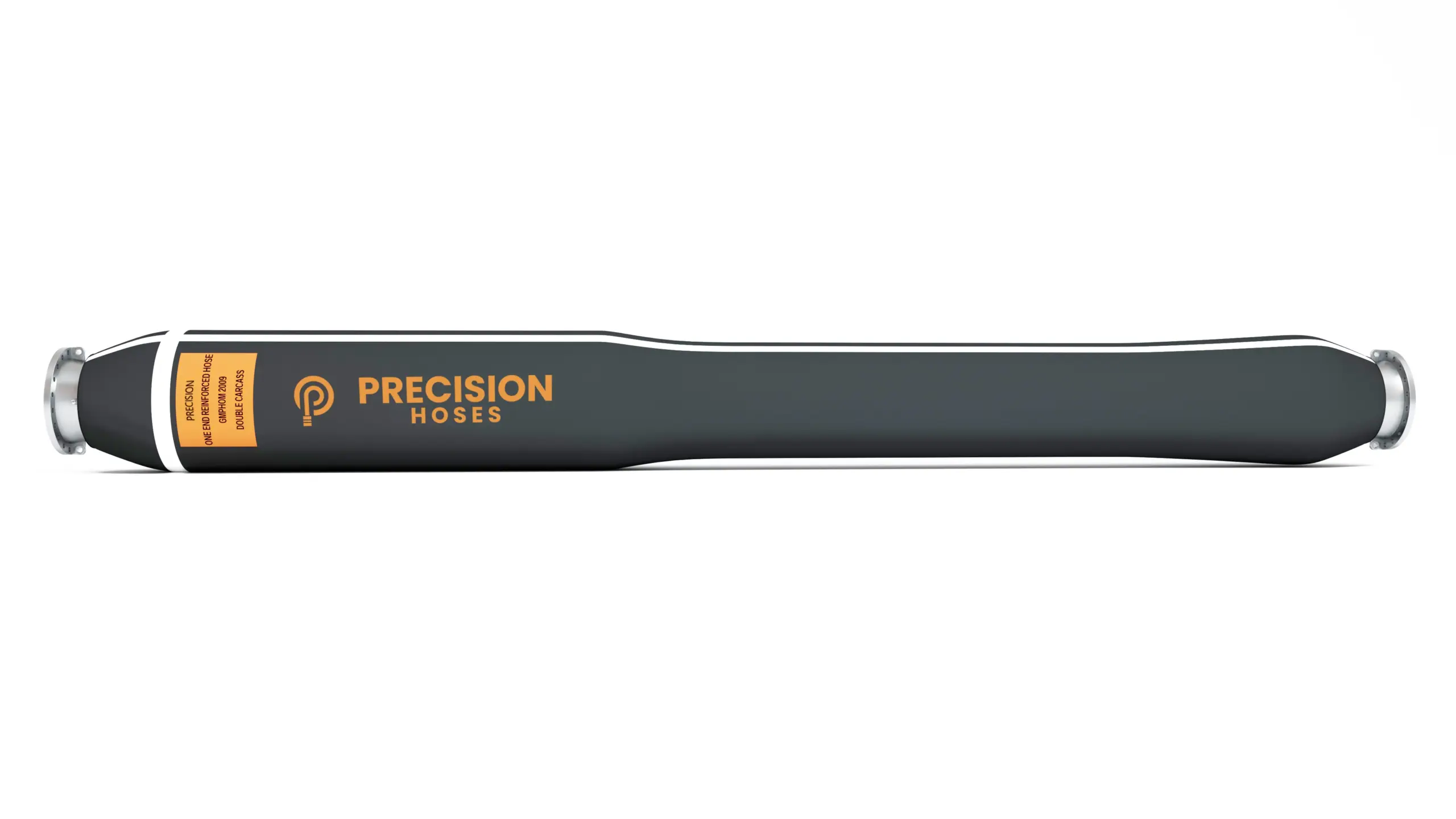

One End Reinforced Submarine Hose without Collars

Description

The One End Reinforced Submarine Hose without Collars is engineered for offshore oil and gas transfer operations, specifically in submerged environments. This hose features a reinforced design on one end, allowing for effective connection to floating systems while maintaining flexibility and durability for transporting crude oil and refined products.

1. Construction

• Inner Liner: Made from oil-resistant synthetic rubber or composite materials, ensuring compatibility with various hydrocarbons and petrochemicals during transfer.
• Reinforcement Layers: The reinforced end includes multiple layers of high-tensile synthetic fibers or steel wire, providing the necessary strength to withstand high pressures and dynamic forces during operation.
• Outer Cover: The hose is protected by an abrasion-resistant outer layer crafted from durable synthetic rubber, which safeguards against seawater, physical wear, and environmental factors.

2. Design Features

• No Collars: The absence of collars allows for greater flexibility and ease of handling, reducing the overall weight of the hose and facilitating smoother operations in various marine conditions.
• Buoyancy Control: Designed to achieve neutral buoyancy, the hose can either float or remain submerged, depending on the specific operational requirements.

3. Standard Sizes

• Inner Diameter: Available in standard sizes ranging from 6 inches (150mm) to 24 inches (600mm), tailored to meet the needs of different offshore applications.
• Length: Standard lengths are typically around 12 meters, with custom lengths available to accommodate specific operational requirements.

4. Working Pressure

• Rated to handle working pressures generally between 10 to 20 bars (145 to 290 psi), ensuring reliable performance during high-pressure oil transfer operations.

5. Temperature Range

• Suitable for operation within a temperature range of -20°C to 80°C, making it adaptable to various offshore climates and environmental conditions.

6. End Fittings

• Equipped with flanged or swivel-type end fittings made from corrosion-resistant materials, such as stainless steel or galvanized metal, ensuring secure connections to subsea pipelines or floating buoy systems.
• These fittings are designed to comply with OCIMF standards, promoting safety and compatibility in marine oil transfer applications.

7. Performance Characteristics

• Tensile Strength: Built to withstand significant tensile loads encountered during offshore oil transfer, particularly at the reinforced end where stress is concentrated.
• Flexibility: Maintains excellent flexibility, allowing the hose to adapt to movement caused by waves and underwater currents without compromising its structural integrity.
• Abrasion Resistance: The robust outer cover protects against damage from contact with rough surfaces on the seabed and other environmental hazards.

8. Applications

• Primarily used in offshore oil transfer systems, especially in Single Point Mooring (SPM) and Conventional Buoy Mooring (CBM) operations.
• Ideal for submerged hose strings connecting floating buoys to subsea pipelines for the transfer of crude oil and refined products.

9. Certifications

The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.

The One End Reinforced Submarine Hose without Collars offers a robust and flexible solution for offshore oil transfer, designed to withstand the challenges of submerged environments while providing reliable performance in transporting crude oil and refined products.



Technical Parameters:





Note: Specifications, pressures, colours, etc. can be customized according to requirements.
