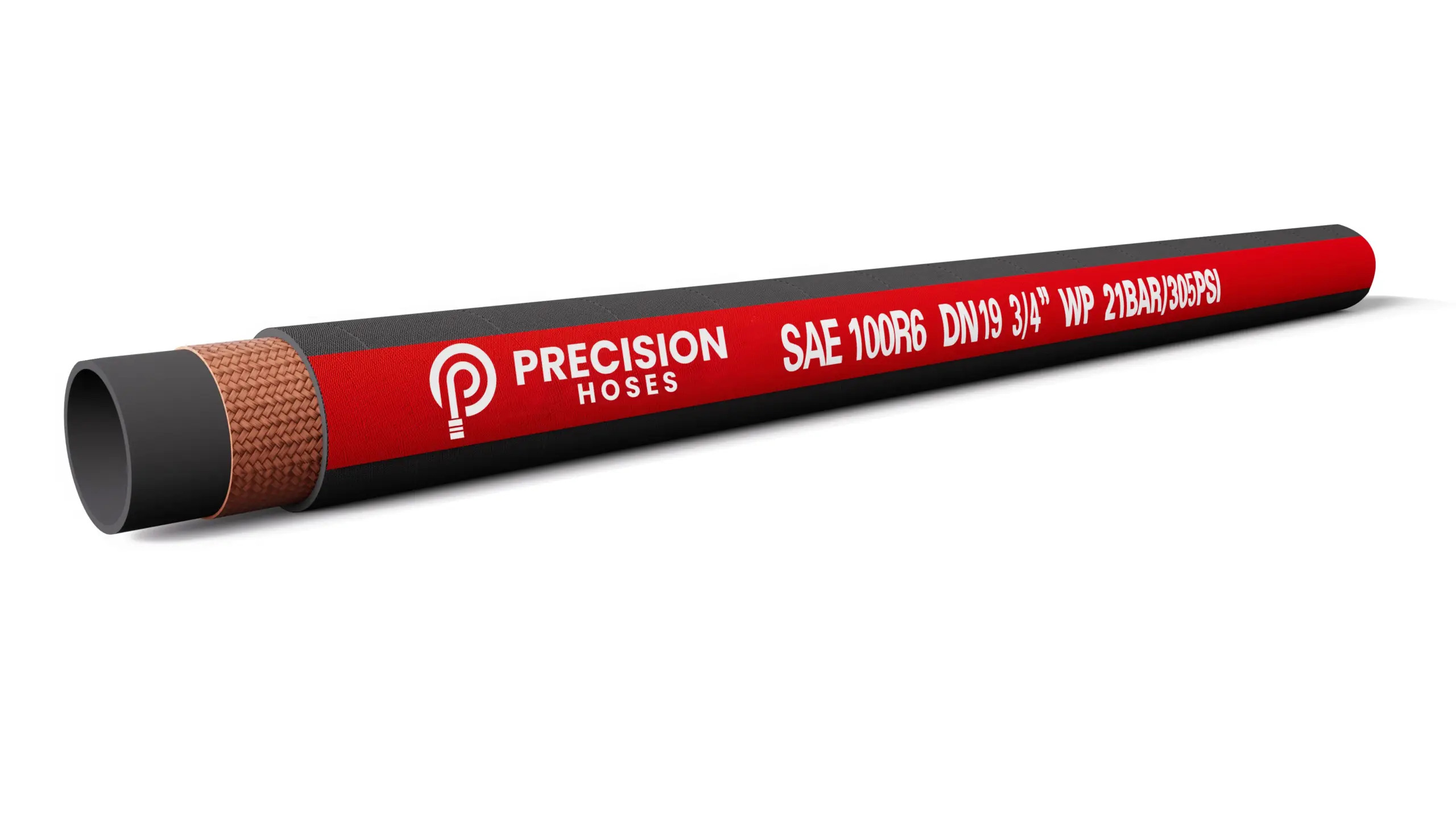

R6 Oil Hose

Description

The R6 Oil Hose is designed for low-pressure hydraulic oil applications and is used in the transfer of petroleum-based hydraulic fluids. It is commonly employed in hydraulic lines, lubrication systems, and low-pressure circuits in industrial machinery. Known for its lightweight, flexible construction, the R6 oil hose provides excellent performance in low-pressure operations while being resistant to oils and abrasion.

1. Construction

• Inner Tube: The inner tube is made from nitrile rubber (NBR) or synthetic rubber, providing excellent resistance to petroleum-based fluids, hydraulic oils, and lubricants. This material ensures smooth fluid transfer while resisting oil degradation.
• Reinforcement: The hose is reinforced with one high-tensile synthetic textile braid. This lightweight reinforcement offers flexibility, making it easy to handle, while still providing the strength needed for low-pressure operations.
• Outer Cover: The outer cover is made from synthetic rubber, designed to resist abrasion, weathering, and oil exposure. It ensures the hose maintains durability even in demanding environments.

2. Standard Sizes

• Inner Diameter: Typically available in sizes ranging from 1/4 inch (6mm) to 1 inch (25mm), depending on the specific application and hydraulic system requirements.
• Length: Standard lengths range from 10 to 50 meters, with custom lengths available based on specific needs.

3. Working Pressure

• The R6 oil hose is designed for low-pressure applications, with working pressures typically ranging from 40 to 100 bars (580 to 1450 psi), depending on the diameter and construction of the hose.

4. Temperature Range

• The hose operates effectively in temperatures ranging from -40°C to 100°C (-40°F to 212°F), making it suitable for a variety of operating conditions in different climates.

5. Performance Characteristics

• Oil Resistance: The nitrile rubber inner tube offers excellent resistance to petroleum-based oils and hydraulic fluids, ensuring long-lasting performance without swelling or deterioration.
• Flexibility: The lightweight construction and textile braid reinforcement provide excellent flexibility, making the hose easy to install and handle, especially in tight spaces or where mobility is important.
• Durability: The outer synthetic rubber cover is resistant to abrasion, oil, and ozone, ensuring protection against external factors and extending the hose’s service life.
• Low-Pressure Capability: Designed specifically for low-pressure hydraulic systems, the hose delivers reliable performance in lubrication lines, low-pressure hydraulic circuits, and general industrial applications.

6. Applications

• Used for low-pressure hydraulic lines, lubrication systems, and fuel oil transfer in industrial and machinery applications.
• Ideal for mobile equipment, agricultural machinery, and general industrial systems that require oil-resistant, low-pressure hoses.
• Suitable for applications where flexibility and ease of installation are important, especially in confined spaces.

7. End Fittings

• The hose can be fitted with various types of threaded fittings, quick-connect couplings, or crimped fittings, depending on the system’s requirements, ensuring leak-proof and secure connections.

8. Certifications

The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.

The R6 Oil Hose is a versatile, lightweight, and flexible solution for low-pressure hydraulic and oil transfer systems. With its durable construction and resistance to oils and abrasion, it provides reliable performance in hydraulic lines, lubrication systems, and various industrial applications.
