Description

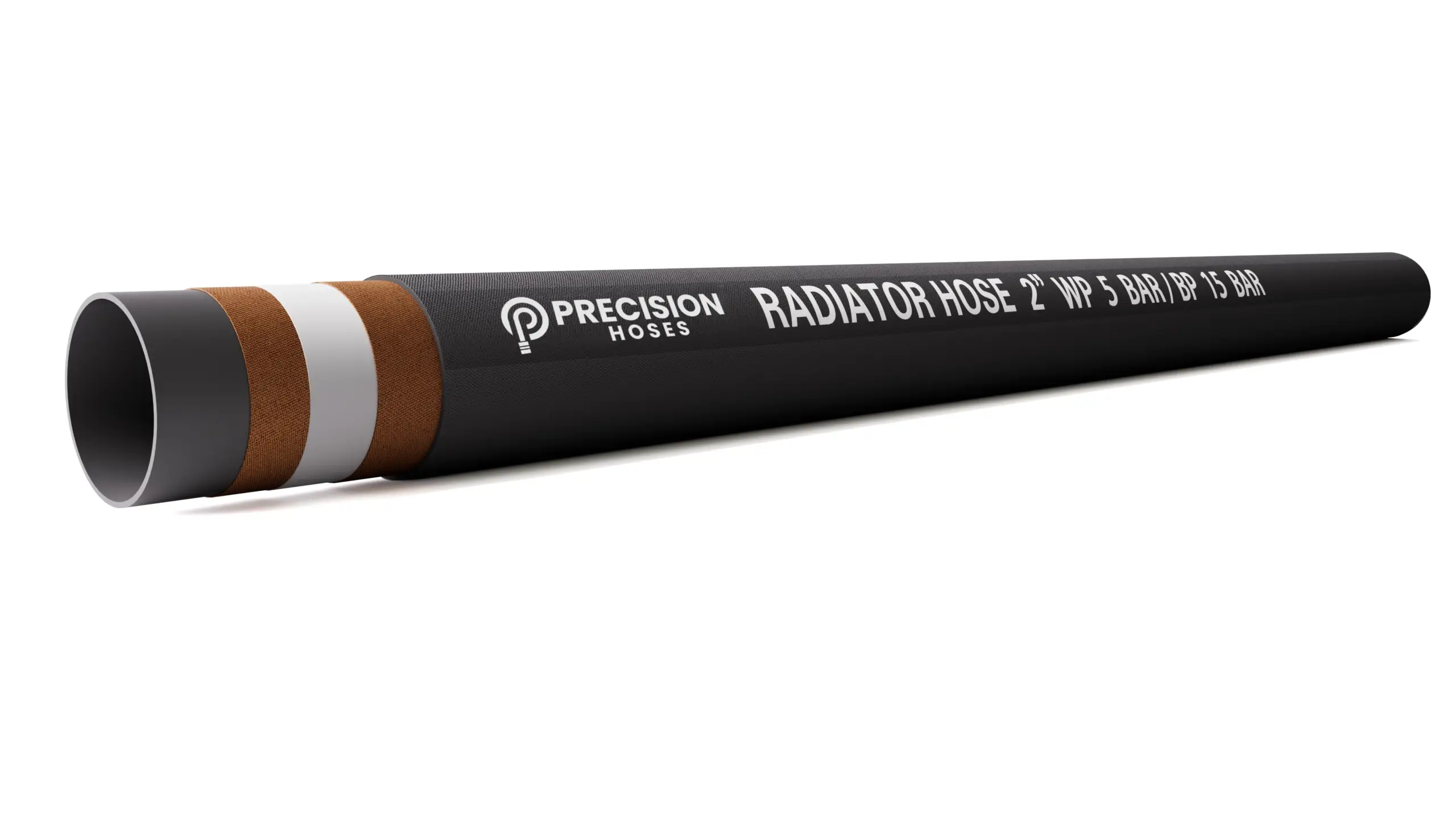

Our Radiator Hose is designed for the efficient transfer of coolant fluids, ensuring optimal engine cooling performance in various industrial and vehicle applications. Built to withstand high temperatures and pressures, this hose is ideal for use in automotive and heavy machinery systems, keeping your engine temperature within safe operating ranges.
Product Highlights
The Radiator Hose is constructed with EPDM rubber, known for its superior temperature resistance and aging resistance. It ensures long-term reliability even under extreme working conditions. The hose is flexible yet durable, making it easy to handle and install in various systems.
Available Sizes
Our radiator hoses are available in multiple internal diameters (ID) to meet different system requirements:
- 19 mm (0.75″)
- 22 mm (0.87″)
- 25 mm (1.00″)
- 28 mm (1.10″)
- 30 mm (1.18″)
- 32 mm (1.25″)
- 36 mm (1.42″)
- 38 mm (1.50″)
- 41 mm (1.61″)
- 45 mm (1.77″)
- 48 mm (1.89″)
- 51 mm (2.01″)
- 57 mm (2.24″)
- 60 mm (2.36″)
- 64 mm (2.52″)
- 70 mm (2.76″)
- 76 mm (2.99″)
- 80 mm (3.15″)
- 89 mm (3.50″)
- 102 mm (4.02″)
- 114 mm (4.49″)
- 127 mm (5.00″)
Custom diameters and specific project requirements are also available upon request.
Key Components
- Inner Lining
Made from EPDM (Ethylene Propylene Diene Monomer) rubber, the inner lining provides excellent resistance to high temperatures and coolant fluids. The tensile strength of the EPDM rubber is ≥ 13 MPa, ensuring the hose can withstand high pressure and temperature variations in the system. - Reinforcement Layer
The hose features a high-strength spiral textile cord reinforcement. This layer enhances the hose’s durability, providing resistance against kinking and wear, and ensures that it remains intact under pressure. - Outer Cover
The outer cover is also made from EPDM rubber, with a tensile strength ≥ 13 MPa. This ensures high resistance to aging, UV exposure, and external mechanical wear. It provides superior protection for the hose in tough operating environments.
Technical Specifications
- Working Temperature: -40°C to 150°C
- Safety Factor: 10:1, ensuring reliability and long-term performance in high-pressure applications
- Colour: Available in various colours, including black and blue
Advantages
- EPDM Rubber: The use of EPDM rubber for both the inner and outer layers provides exceptional temperature resistance and aging resistance, making the hose suitable for long-term use under diverse conditions.
- Durability: The high-strength textile cord reinforcement provides exceptional resistance to pressure, wear, and kinking, extending the hose’s lifespan.
- Flexibility: Easy to install and operate, even in tight spaces, while providing reliable performance in demanding applications.
Applications
This Radiator Hose is widely used in the following applications:
- Automobile Heat Dissipation Systems: Connecting the radiator and engine, this hose plays a critical role in transferring coolant and reducing the water temperature.
- Vehicle Types: Commonly used in sedans, commercial vehicles, and engineering vehicles, among others.
- Industrial Applications: Suitable for use in various cooling systems requiring high-temperature resistance.
Why Choose Our Radiator Hose?
- Temperature Resistance: The EPDM material ensures the hose can handle extreme temperature variations without degradation.
- Long Service Life: Designed to perform efficiently over an extended period, reducing the frequency of replacements and maintenance.
- Customization: Available in multiple sizes and can be tailored to your project’s specifications.
- Easy to Handle: Lightweight and flexible, ensuring simple installation and operation in various systems.
For all your radiator hose needs, our Radiator Hose offers the perfect balance of durability, flexibility, and performance. Contact us today to learn more or to request custom options for your specific application!
Available Sizes & Specifications
| Item Code | I.D (mm) | O.D (mm) | W.P (bar) | W.P (psi) | B.P (bar) | B.P (psi) | Weight (kg/m) | Max Length (m) |
|---|---|---|---|---|---|---|---|---|
| RD019-075 | 19 | 29.4 | 5 | 75 | 15 | 225 | 0.45 | 61 |
| RD022-075 | 22 | 32.4 | 5 | 75 | 15 | 225 | 0.50 | 61 |
| RD025-075 | 25 | 35.4 | 5 | 75 | 15 | 225 | 0.62 | 61 |
| RD028-075 | 28 | 38.4 | 5 | 75 | 15 | 225 | 0.67 | 61 |
| RD030-075 | 30 | 40.4 | 5 | 75 | 15 | 225 | 0.72 | 61 |
| RD032-075 | 32 | 42.4 | 5 | 75 | 15 | 225 | 0.77 | 61 |
| RD036-075 | 36 | 46.4 | 5 | 75 | 15 | 225 | 0.85 | 61 |
| RD038-075 | 38 | 48.4 | 5 | 75 | 15 | 225 | 0.89 | 61 |
| RD041-075 | 41 | 51.4 | 5 | 75 | 15 | 225 | 0.95 | 61 |
| RD045-075 | 45 | 55.4 | 5 | 75 | 15 | 225 | 1.04 | 61 |
| RD048-075 | 48 | 58.4 | 5 | 75 | 15 | 225 | 1.09 | 61 |
| RD051-075 | 51 | 61.4 | 5 | 75 | 15 | 225 | 1.16 | 61 |
| RD057-075 | 57 | 67.4 | 5 | 75 | 15 | 225 | 1.28 | 61 |
| RD060-075 | 60 | 70.4 | 5 | 75 | 15 | 225 | 1.34 | 61 |
| RD064-075 | 64 | 74.4 | 5 | 75 | 15 | 225 | 1.43 | 61 |
| RD070-075 | 70 | 80.8 | 5 | 75 | 15 | 225 | 1.55 | 61 |
| RD076-075 | 76 | 86.8 | 5 | 75 | 15 | 225 | 1.67 | 61 |
| RD080-075 | 80 | 90.8 | 5 | 75 | 15 | 225 | 1.75 | 61 |
| RD089-075 | 89 | 99.8 | 5 | 75 | 15 | 225 | 1.94 | 61 |
| RD102-075 | 102 | 112.8 | 5 | 75 | 15 | 225 | 2.20 | 61 |
| RD114-075 | 114 | 124.8 | 5 | 75 | 15 | 225 | 2.44 | 61 |
| RD127-075 | 127 | 138.2 | 5 | 75 | 15 | 225 | 2.87 | 61 |
Note: Specifications, pressures, colours, etc., can be customized according to requirements.
