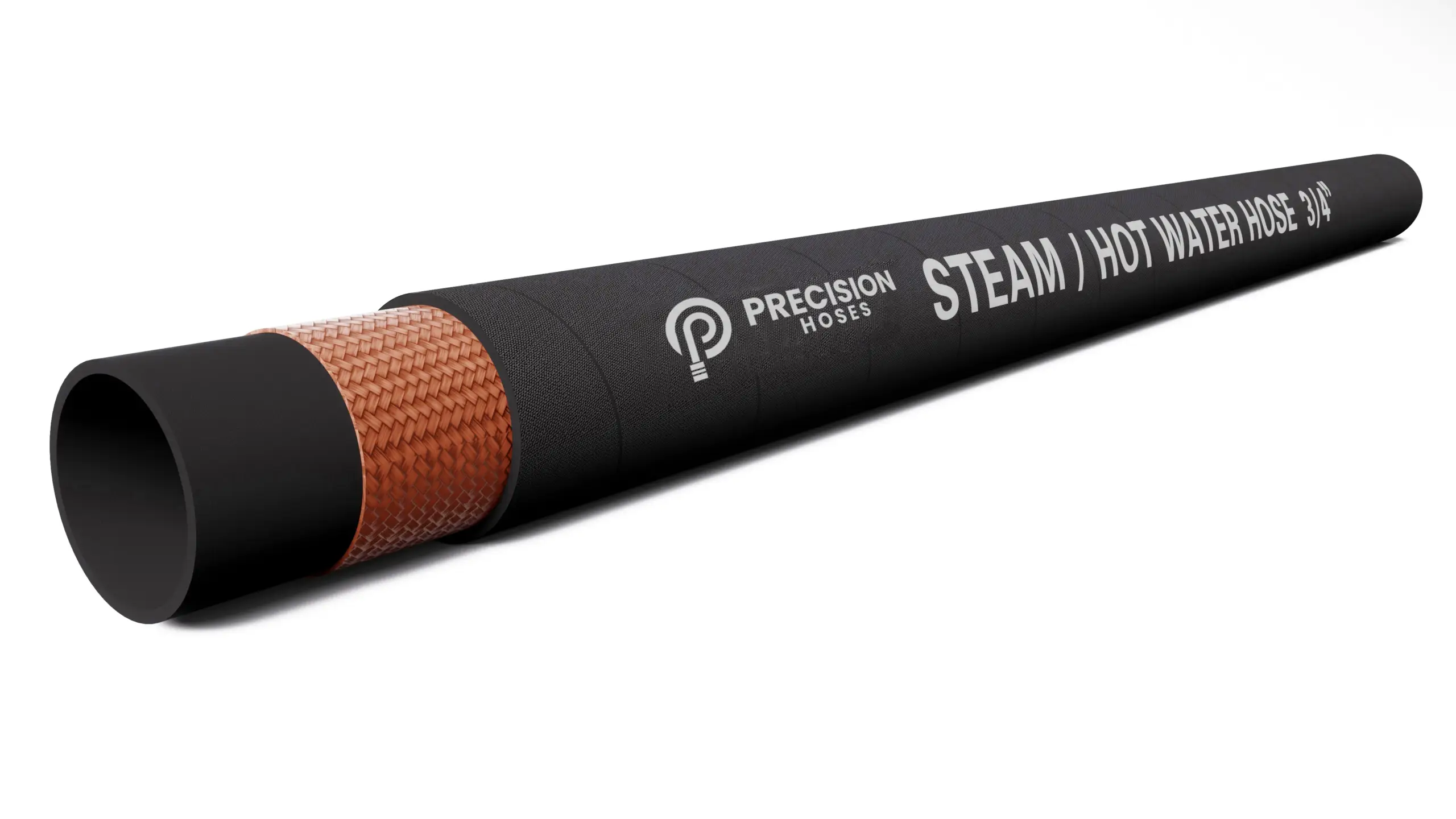

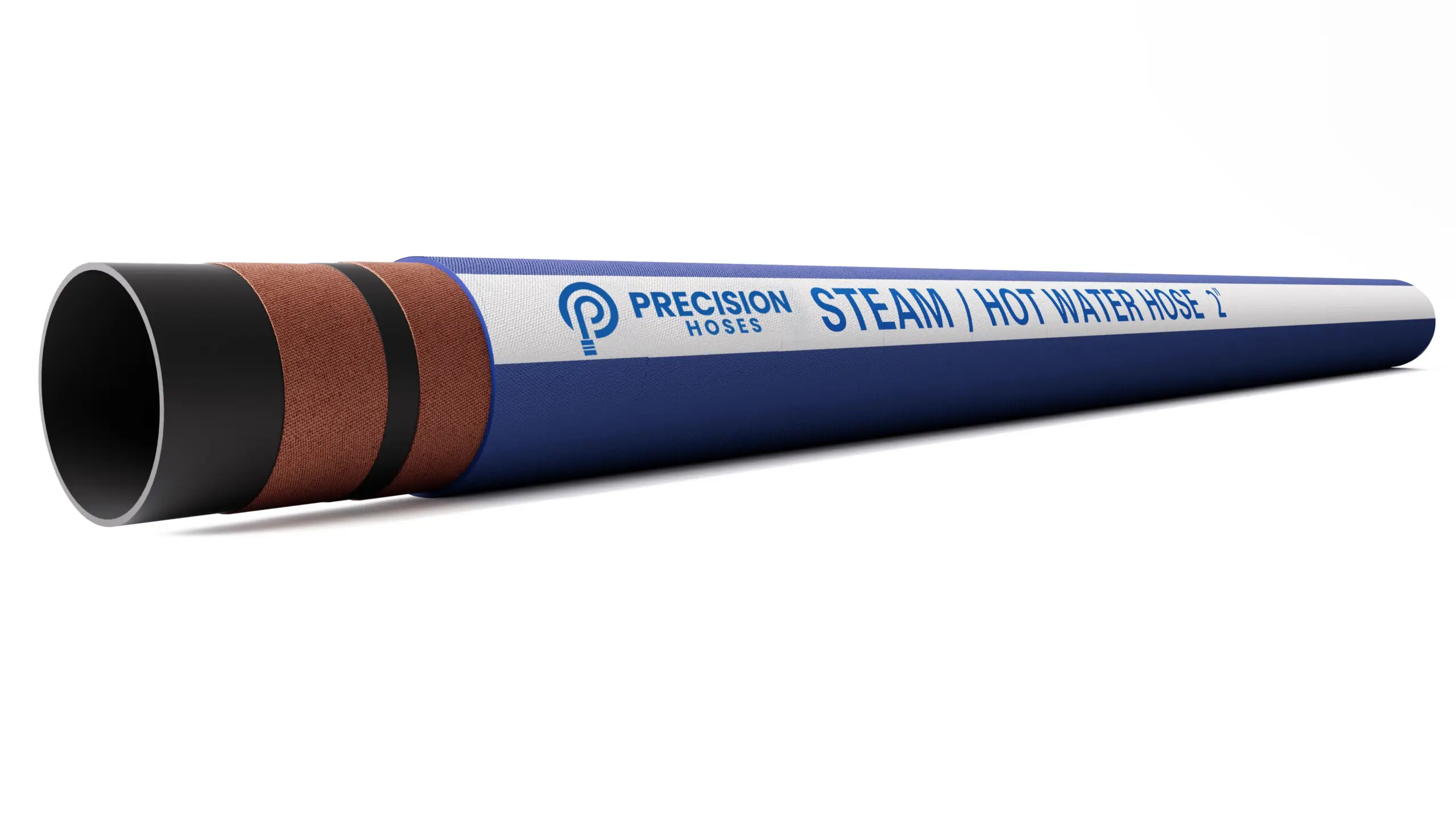

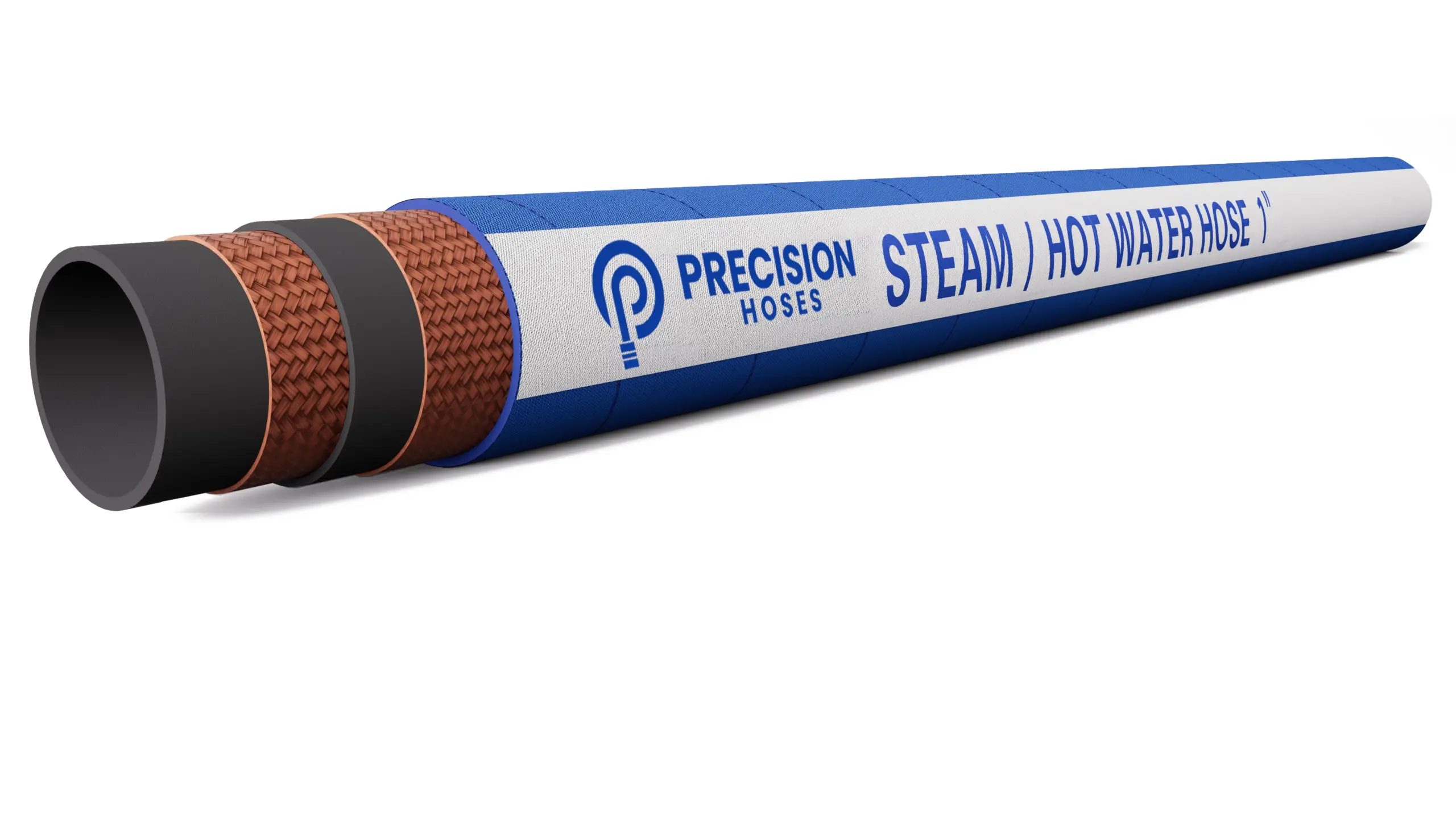

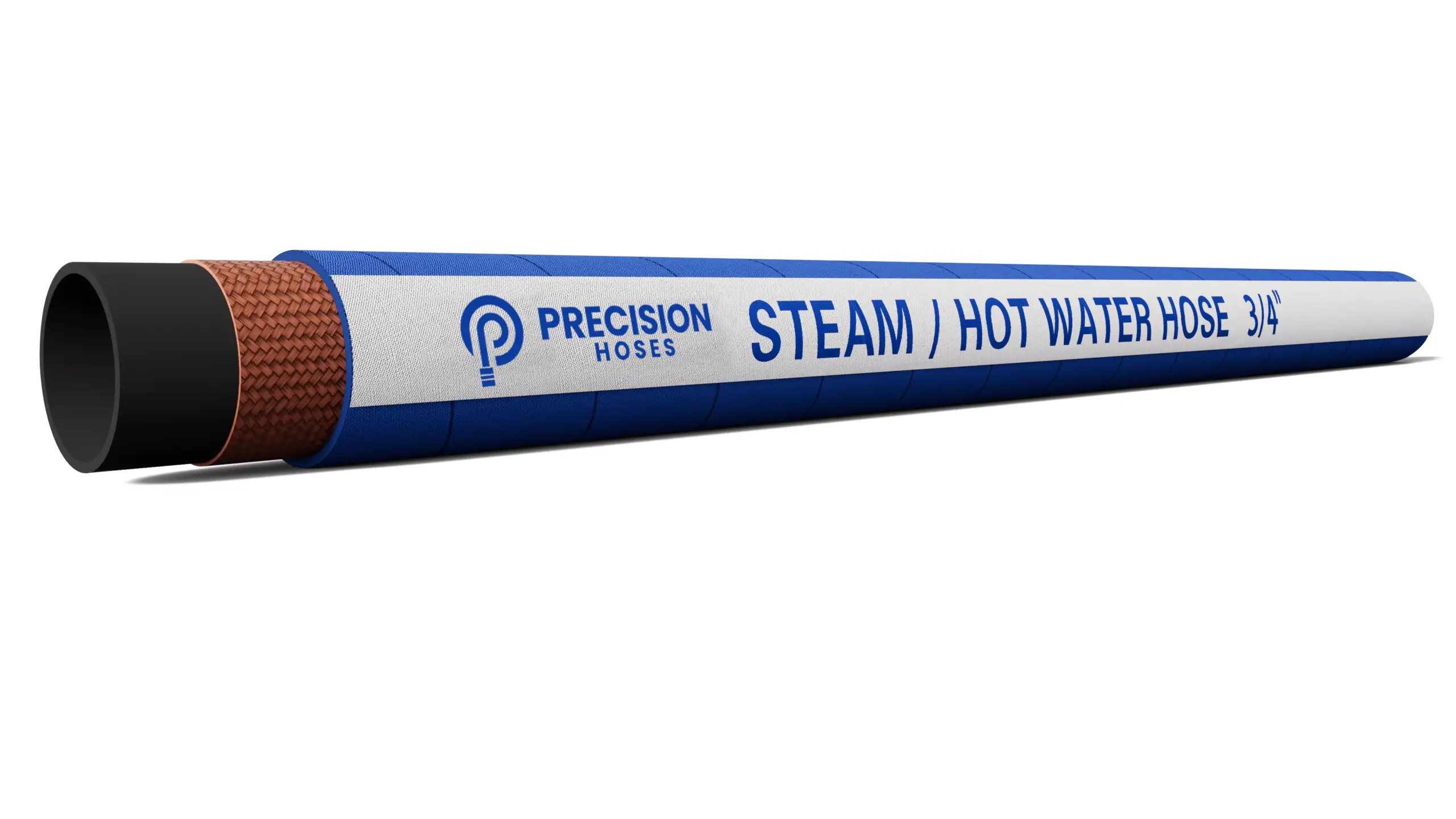

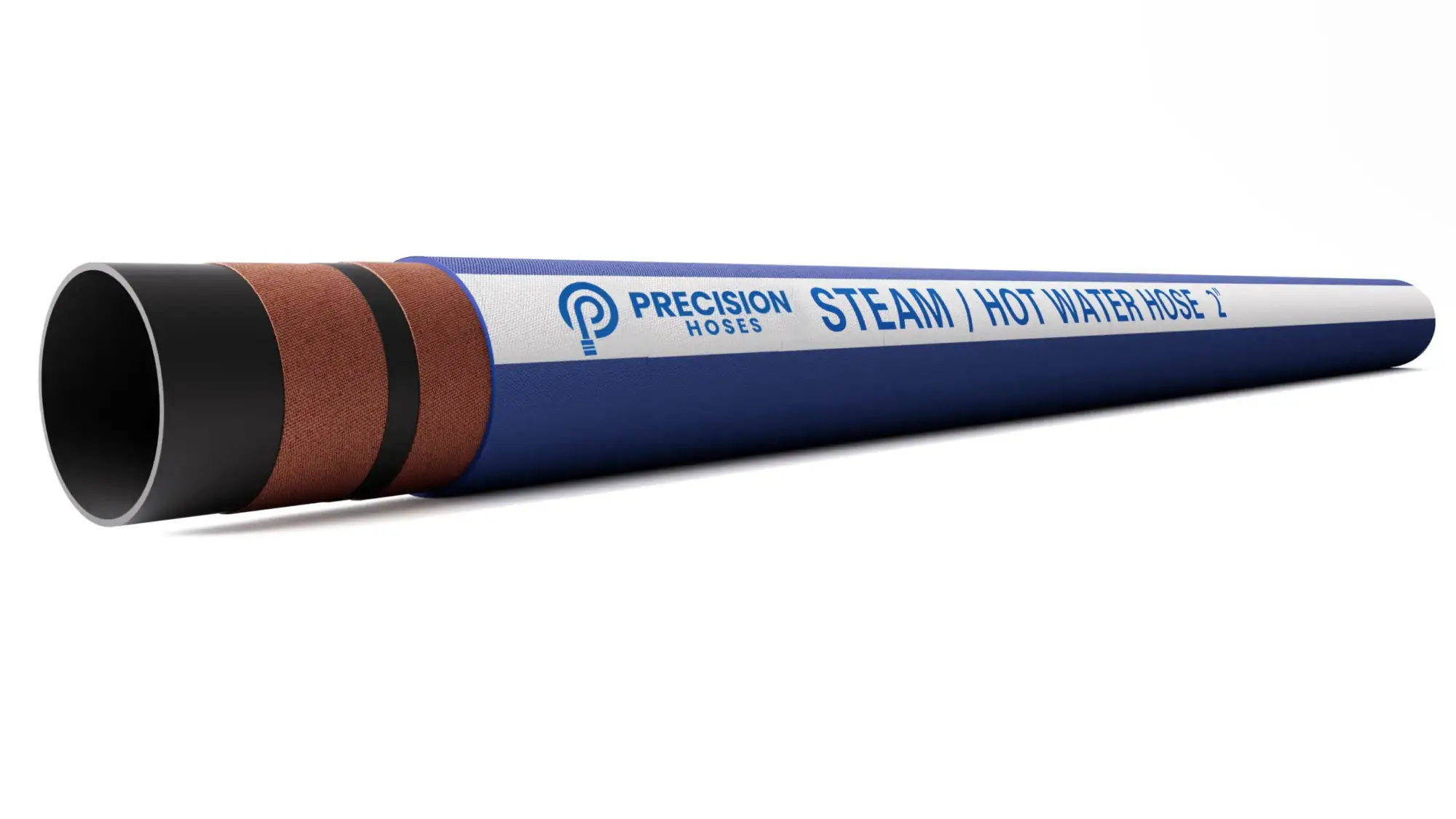

Steam and Hot Water Delivery Hose

Description

The Steam and Hot Water Delivery Hose is designed specifically for conveying steam and hot water in high-temperature applications. It is commonly used in industries such as food processing, chemical processing, and various industrial applications where steam is utilized for heating, sterilization, or processing.

1. Construction

• Inner Tube: Made from high-quality synthetic rubber (typically EPDM or NBR), which provides excellent resistance to high temperatures and steam. The inner tube is designed to handle the extreme conditions associated with steam and hot water transfer.
• Reinforcement: Reinforced with multiple layers of synthetic textile plies or steel wire for added strength and flexibility. This reinforcement allows the hose to withstand high pressure and prevents it from collapsing under vacuum conditions.
• Outer Cover: The outer cover is made from weather-, ozone-, and abrasion-resistant rubber, providing protection against external wear and environmental factors. This ensures durability in rugged conditions.

2. Standard Sizes

• Inner Diameter: Typically available in sizes ranging from 1 inch (25mm) to 6 inches (150mm), depending on specific application needs.
• Length: Standard lengths usually range from 10 to 20 meters, with custom lengths available upon request.

3. Working Pressure

• Designed for high-pressure applications, with working pressures typically ranging from 10 to 20 bars (145 to 290 psi), depending on the hose size and construction.
• Burst Pressure: The burst pressure is generally at least 3 to 4 times the working pressure, ensuring safety during operation.

4. Temperature Range

• The hose can operate effectively within a temperature range of -40°C to 165°C (-40°F to 329°F) for steam applications, making it suitable for various industrial environments.

5. Performance Characteristics

• Heat Resistance: The synthetic rubber material is specifically formulated to withstand high temperatures and prevent degradation due to steam exposure.
• Flexibility: Despite its robust construction, the hose maintains flexibility for easy handling and installation in tight spaces.
• Durability: The combination of a tough inner tube and abrasion-resistant outer cover ensures long-lasting performance in demanding conditions.

6. Applications

• Commonly used in food processing for steam delivery in cooking and sterilization processes.
• Suitable for chemical processing and other industries requiring hot water and steam transfer.
• Used in industrial cleaning applications, where steam is utilized for cleaning and sanitization.
• Ideal for power plants and boiler operations where steam transport is essential.

7. End Fittings

• The hose can be equipped with various types of end fittings, such as flanges, quick-connect couplings, or screw fittings, depending on the specific requirements. These fittings ensure secure connections and help prevent leaks.

8. Certifications

The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.

The Steam and Hot Water Delivery Hose is a robust and versatile solution for conveying steam and hot water in high-temperature industrial applications. With its durable construction and ability to withstand extreme conditions, this hose is ideal for use in food processing, chemical processing, and other industries where steam is critical for operations.

9. Available Sizes

Note: Custom sizes and lengths are available upon request to meet your specific needs.
