Description

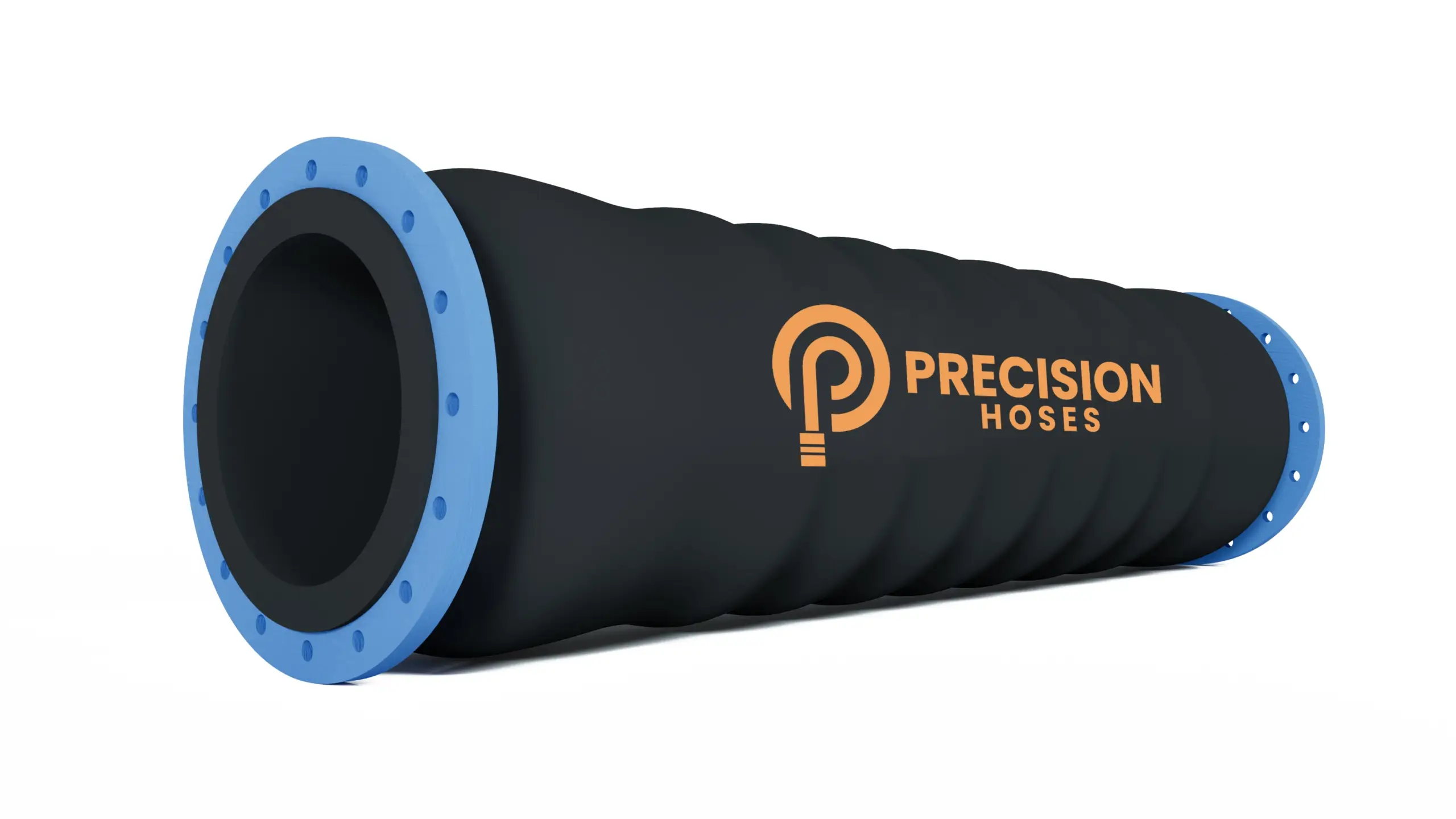

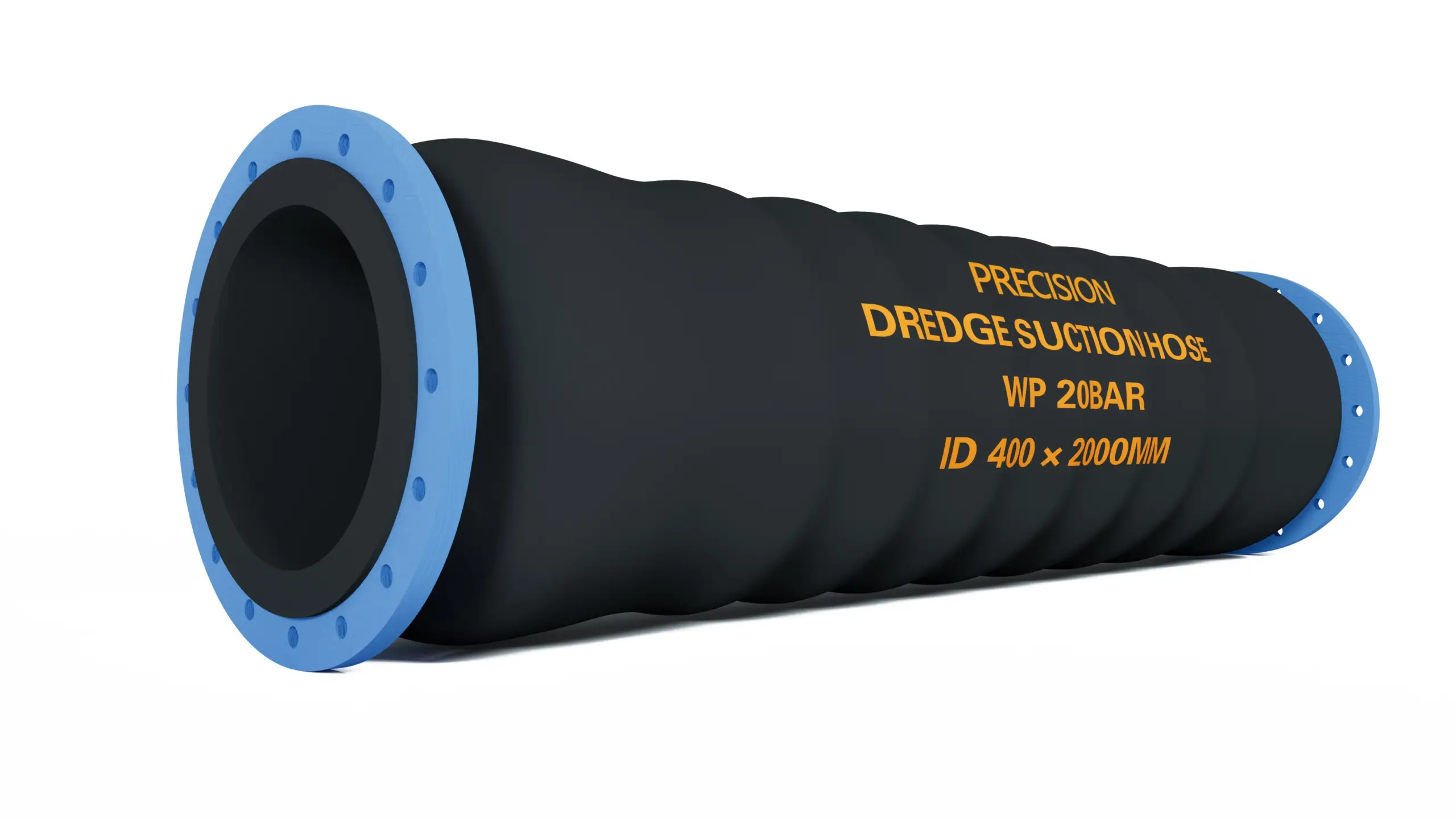

The Suction Dredging Hose is a highly durable and flexible hose designed for sediment dredging and sludge cleaning in various marine and industrial applications. Made with high-quality NR (Natural Rubber) and BR (Butadiene Rubber), it provides excellent wear resistance, making it the perfect solution for tough dredging operations in rivers, lakes, and ports. With customizable reinforcement options, this hose is built to handle high-pressure conditions while maintaining flexibility and reliability.
Product Highlights
The Suction Dredging Hose is available with three types of reinforcement layers to match different operational requirements, ensuring optimal flexibility, pressure tolerance, and abrasion resistance. Its cover is designed to withstand environmental stress and offers excellent durability in marine and industrial applications.
Key Components
- Inner Lining
The hose features a lining made of NR + BR rubber, providing exceptional flexibility and resistance to abrasion, making it ideal for sediment and sludge handling in harsh conditions. - Reinforcement Layer
Choose from three reinforcement options based on your specific application:- High-strength spiral textile cord
- High-strength spiral textile cord with helix steel wire
- High-strength spiral textile cord with steel ring
These layers add strength and durability, ensuring the hose can endure high-pressure and tough operating environments.
- Outer Cover
The outer cover is composed of BR + EPDM, offering resistance to weathering, UV rays, and ozone, while providing extra protection against wear and damage.
Technical Specifications
- Working Temperature: -20°C to 80°C
- Safety Factor: 4:1 for high-pressure performance
- Color: Black
- Standard: Can be customized to meet specific requirements.
Available Sizes
This Suction Dredging Hose is available in the following sizes:
| Inner Diameter (ID) | Pressure (WP) | Max Length |
|---|---|---|
| 200 mm (8″) | 10~20 bar | 11.8 m |
| 250 mm (10″) | 10~20 bar | 11.8 m |
| 300 mm (12″) | 10~20 bar | 11.8 m |
| 350 mm (14″) | 10~20 bar | 11.8 m |
| 400 mm (16″) | 10~20 bar | 11.8 m |
| 450 mm (18″) | 10~20 bar | 11.8 m |
| 500 mm (20″) | 10~20 bar | 11.8 m |
| 600 mm (24″) | 10~20 bar | 11.8 m |
| 800 mm (32″) | 10~20 bar | 11.8 m |
| 1100 mm (44″) | 10~20 bar | 11.8 m |
Note: Specifications, pressures, colours, etc., can be customized according to requirements.
Advantages
- High Flexibility and Durability: Ideal for demanding dredging applications, providing reliable service in harsh environments.
- Pressure Resistance: Handles high-pressure operations effectively.
- Customizable: Available in various sizes, pressures, and colors to suit specific project needs.
Applications
The Suction Dredging Hose is ideal for:
- Sediment Dredging: Used for dredging sediment, sand, and silt in rivers, lakes, and ports.
- Sludge Cleaning: Essential for removing sludge in water treatment and environmental projects.
- Marine Projects: Works effectively in marine construction and dredging operations.
Why Choose Our Suction Dredging Hose?
- Customizable: Tailor the hose to meet your specific project requirements.
- Long-lasting: Built to withstand the wear and tear of tough dredging conditions.
- High Performance: Ensures smooth, efficient operation in demanding applications.
For all your dredging and marine construction needs, the Suction Dredging Hose offers the reliability and performance you can count on. Contact us today for more details or to place an order!
