Description
The UHMWPE Chemical Anti-static Suction and Discharge Hose is engineered for the safe transfer of a wide variety of aggressive chemicals in both suction and discharge operations. Its construction, featuring an ultra-high molecular weight polyethylene (UHMWPE) inner liner, ensures superior chemical resistance, making it ideal for handling highly corrosive liquids, acids, solvents, and other hazardous fluids in industrial environments.

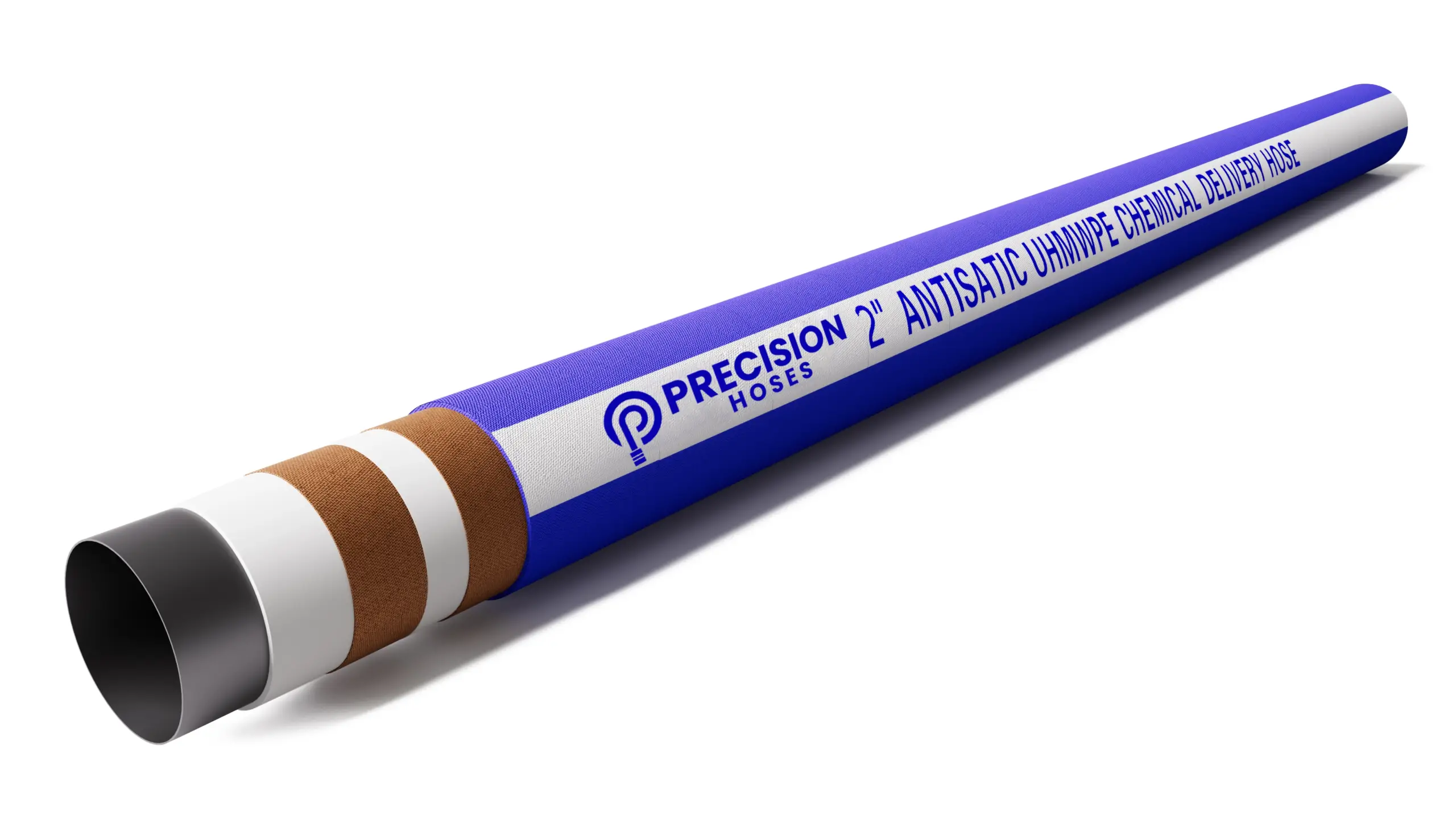

1. Construction
- Inner Liner: Made from UHMWPE (Ultra-High-Molecular-Weight Polyethylene), the inner liner offers outstanding chemical resistance, suitable for transferring corrosive substances such as acids, alkalis, and organic solvents. The liner is non-stick and smooth, ensuring optimal flow rates and preventing fluid contamination.
- Reinforcement: The hose is reinforced with high-tensile synthetic cords, textile plies, or spiral steel wire, providing the necessary strength to withstand both suction and discharge pressures. This reinforcement also enhances the hose’s flexibility and durability in tough environments.
- Outer Cover: The outer layer is crafted from EPDM or a chemical-resistant synthetic rubber, offering excellent protection against environmental factors such as weather, abrasion, and ozone, as well as resistance to wear and tear during industrial handling.
2. Standard Sizes
- Inner Diameter: Available in a range of sizes from 1 inch (25mm) to 8 inches (200mm), depending on the volume of fluid to be transferred.
- Length: Standard lengths typically range from 10 meters to 20 meters, with custom lengths available to meet specific operational needs.
3. Working Pressure
- The hose is designed for medium to high-pressure suction and discharge applications, with a typical working pressure range of 10 to 16 bars (145 to 232 psi), depending on size and construction.
4. Vacuum Rating
- The hose is built to handle full suction (vacuum) during operations, with a vacuum rating typically at 29 inches of mercury (Hg), ensuring efficient suction in industrial applications.
5. Temperature Range
- The hose can operate in a wide temperature range, typically from -40°C to 80°C (-40°F to 176°F), making it suitable for a variety of environmental and operational conditions.
6. End Fittings
- The hose is equipped with corrosion-resistant fittings, such as stainless steel, polypropylene, or PTFE, ensuring safe connections for suction and discharge operations. The fittings can be flanged, threaded, or camlock type, based on the application.
- The fittings are designed to resist corrosion from chemicals, ensuring leak-free and secure connections.
7. Performance Characteristics
- Chemical Resistance: The UHMWPE inner liner offers exceptional resistance to a broad range of chemicals, including corrosive acids, alkalis, and solvents, making the hose suitable for nearly any chemical transfer application.
- Suction and Discharge Capability: Reinforced construction allows the hose to handle both positive and negative pressures, making it ideal for use in suction and discharge operations in chemical plants and other industries.
- Abrasion Resistance: The rugged outer cover protects the hose from external wear, ensuring durability even in harsh industrial environments where abrasion is a concern.
- Flexibility: Despite its robust construction, the hose maintains a high degree of flexibility, allowing easy handling during suction and discharge operations.
8. Applications
- Primarily used for the suction and discharge of aggressive chemicals, acids, solvents, and other hazardous fluids in industrial settings such as chemical plants, refineries, and manufacturing facilities.
- Suitable for use in chemical tank trucks, bulk transfer systems, and process industries requiring suction and discharge operations.
- Ideal for applications involving chemical waste disposal, chemical feed lines, and tank-to-tank transfers.
9. Certifications
The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.
The UHMWPE Chemical Anti-static Suction and Discharge Hose is a versatile, high-performance solution for the transfer of aggressive chemicals, offering superior chemical resistance, flexibility, and durability. Its robust construction and ability to handle both suction and discharge operations make it ideal for industrial chemical handling applications.
Available Sizes:
| Item Code | I.D. (mm) | I.D. (inch) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Weight (kg/m) | Max Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| ASCHSD019-150 | 19 | 3/4″ | 31.2 | 10 | 150 | 30 | 450 | 0.63 | 40 |
| ASCHSD025-150 | 25 | 1″ | 37.2 | 10 | 150 | 30 | 450 | 0.78 | 40 |
| ASCHSD032-150 | 32 | 1-1/4″ | 44.6 | 10 | 150 | 30 | 450 | 0.96 | 40 |
| ASCHSD038-150 | 38 | 1-1/2″ | 51.6 | 10 | 150 | 30 | 450 | 1.21 | 40 |
| ASCHSD045-150 | 45 | 1-3/4″ | 58.6 | 10 | 150 | 30 | 450 | 1.40 | 40 |
| ASCHSD051-150 | 51 | 2″ | 64.6 | 10 | 150 | 30 | 450 | 1.56 | 40 |
| ASCHSD057-150 | 57 | 2-1/4″ | 70.6 | 10 | 150 | 30 | 450 | 1.72 | 40 |
| ASCHSD064-150 | 64 | 2-1/2″ | 78.6 | 10 | 150 | 30 | 450 | 2.19 | 40 |
| ASCHSD076-150 | 76 | 3″ | 90.6 | 10 | 150 | 30 | 450 | 2.56 | 40 |
| ASCHSD102-150 | 102 | 4″ | 117.4 | 10 | 150 | 30 | 450 | 3.34 | 40 |
| ASCHSD152-150 | 152 | 6″ | 171.8 | 10 | 150 | 30 | 450 | 7.62 | 40 |
Note: Specifications, pressures, colours, etc. can be customized according to requirements.
| Item Code | I.D. (mm) | I.D. (inch) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Weight (kg/m) | Max Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| ASCHSD019-230 | 19 | 3/4″ | 31.2 | 16 | 230 | 48 | 690 | 0.63 | 40 |
| ASCHSD025-230 | 25 | 1″ | 37.2 | 16 | 230 | 48 | 690 | 0.78 | 40 |
| ASCHSD032-230 | 32 | 1-1/4″ | 44.6 | 16 | 230 | 48 | 690 | 0.96 | 40 |
| ASCHSD038-230 | 38 | 1-1/2″ | 52 | 16 | 230 | 48 | 690 | 1.26 | 40 |
| ASCHSD045-230 | 45 | 1-3/4″ | 59 | 16 | 230 | 48 | 690 | 1.46 | 40 |
| ASCHSD051-230 | 51 | 2″ | 65 | 16 | 230 | 48 | 690 | 1.62 | 40 |
| ASCHSD057-230 | 57 | 2-1/4″ | 71 | 16 | 230 | 48 | 690 | 1.80 | 40 |
| ASCHSD064-230 | 64 | 2-1/2″ | 79.4 | 16 | 230 | 48 | 690 | 2.19 | 40 |
| ASCHSD076-230 | 76 | 3″ | 91.4 | 16 | 230 | 48 | 690 | 2.56 | 40 |
| ASCHSD102-230 | 102 | 4″ | 120.2 | 16 | 230 | 48 | 690 | 4.01 | 40 |
| ASCHSD152-230 | 152 | 6″ | 175 | 16 | 230 | 48 | 690 | 8.80 | 40 |
Note: Specifications, pressures, colours, etc. can be customized according to requirements.
| Item Code | I.D. (mm) | I.D. (inch) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Weight (kg/m) | Max Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| ASCHSD019-300 | 19 | 3/4″ | 31.2 | 20 | 300 | 60 | 900 | 0.63 | 40 |
| ASCHSD025-300 | 25 | 1″ | 37.6 | 20 | 300 | 60 | 900 | 0.78 | 40 |
| ASCHSD032-300 | 32 | 1-1/4″ | 46.6 | 20 | 300 | 60 | 900 | 1.21 | 40 |
| ASCHSD038-300 | 38 | 1-1/2″ | 53.4 | 20 | 300 | 60 | 900 | 1.40 | 40 |
| ASCHSD045-300 | 45 | 1-3/4″ | 60.4 | 20 | 300 | 60 | 900 | 1.61 | 40 |
| ASCHSD051-300 | 51 | 2″ | 66.4 | 20 | 300 | 60 | 900 | 1.79 | 40 |
| ASCHSD057-300 | 57 | 2-1/4″ | 72.4 | 20 | 300 | 60 | 900 | 1.98 | 40 |
| ASCHSD064-300 | 64 | 2-1/2″ | 82.2 | 20 | 300 | 60 | 900 | 2.64 | 40 |
| ASCHSD076-300 | 76 | 3″ | 94.2 | 20 | 300 | 60 | 900 | 3.07 | 40 |
| ASCHSD102-300 | 102 | 4″ | 121.4 | 20 | 300 | 60 | 900 | 4.40 | 40 |
| ASCHSD152-300 | 152 | 6″ | 175.4 | 20 | 300 | 60 | 900 | 9.02 | 40 |
Note: Specifications, pressures, colours, etc. can be customized according to requirements.
