Description
The Water Suction and Discharge Hose is a heavy-duty hose designed for the suction and discharge of water in a wide range of applications. Engineered to handle both light and heavy-duty water transfer tasks, this hose is suitable for use in industries such as agriculture, construction, mining, and marine environments. Its robust construction ensures flexibility, durability, and resistance to wear and tear, making it an ideal choice for tough working conditions.

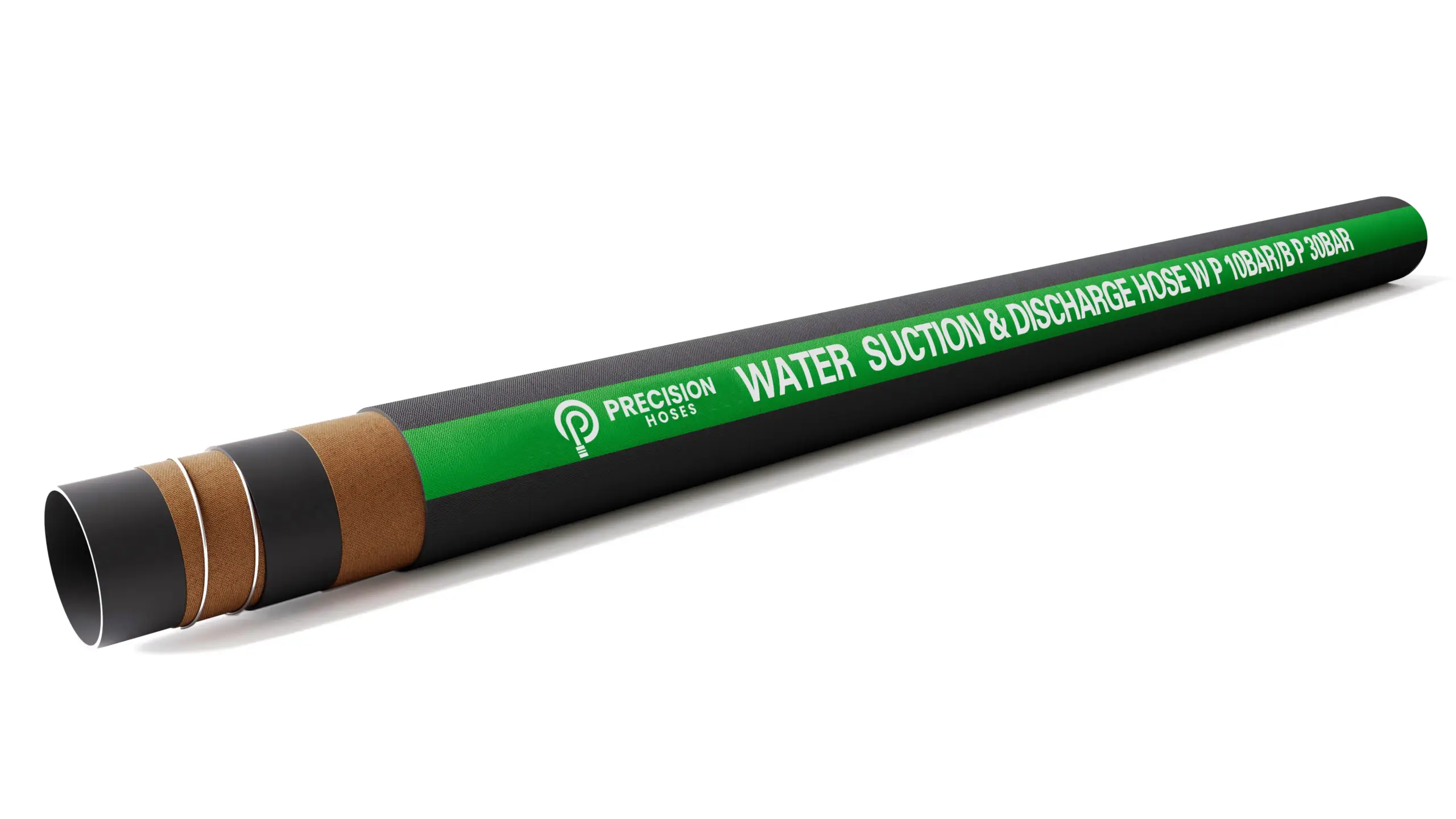

1. Construction
- Inner Tube: The inner tube is made from high-quality, smooth synthetic rubber, which is specifically designed to handle water and mild chemicals. The smooth inner surface ensures efficient water flow and reduces the risk of clogging or buildup.
- Reinforcement: The hose is reinforced with high-tensile synthetic textile plies and/or steel wire helix, providing excellent strength and flexibility. The steel wire helix also allows the hose to maintain its shape under vacuum conditions and offers kink resistance.
- Outer Cover: The outer cover is made from abrasion-resistant synthetic rubber, designed to withstand harsh environments. It protects the hose from ozone, weathering, and abrasion, ensuring a long service life, even in outdoor or rugged conditions.
2. Standard Sizes
- Inner Diameter: Available in a range of sizes, typically from 1 inch (25mm) to 12 inches (300mm), depending on the application and volume of water being transferred.
- Length: Standard hose lengths typically range from 10 to 20 meters, with custom lengths available upon request for specific needs.
3. Working Pressure
- Suitable for medium to heavy-duty applications, with typical working pressure ratings ranging from 10 to 20 bars (145 to 290 psi), depending on the hose size and construction.
4. Vacuum Rating
- The hose is designed for full suction capability, with a vacuum rating of 29 inches of mercury (Hg), making it ideal for water suction tasks in various environments.
5. Temperature Range
- Operates effectively in a wide temperature range, typically from -20°C to 80°C (-4°F to 176°F), ensuring suitability for both hot and cold water transfer.
6. End Fittings
- Compatible with a variety of standard fittings such as camlock, threaded, flanged, or quick-connect couplings, providing secure, leak-free connections. Custom fittings can also be attached based on specific application requirements.
7. Performance Characteristics
- Suction and Discharge Capability: The hose is designed to handle both suction and discharge operations, making it versatile for a variety of water transfer tasks.
- Durability and Flexibility: The reinforced construction ensures durability and flexibility, allowing the hose to withstand rough handling, abrasion, and bending without compromising performance.
- Kink and Crush Resistance: The steel wire helix reinforcement ensures that the hose maintains its shape during suction and under vacuum conditions, preventing kinks and crushes.
- Weather and Ozone Resistance: The outer cover is resistant to weather, ozone, and environmental factors, ensuring long-term performance in outdoor conditions.
- Chemical Resistance: The inner tube offers mild chemical resistance, making the hose suitable for transferring water mixed with some mild chemicals.
8. Applications
- Ideal for use in water suction and discharge tasks in agriculture, construction, and mining industries.
- Commonly used for dewatering, flood control, irrigation, and liquid waste management in various industrial settings.
- Suitable for pumping operations, such as emptying ponds, ditches, tanks, and other water sources.
- Widely used in marine environments for water intake and discharge, including bilge pump systems and dockside water transfer.
- Perfect for portable pump setups in emergency flood relief or fire-fighting situations.
9. Certifications
The manufacturer of the products supplied by Precision Hoses Pty Ltd is certified under the ISO 9001:2008 Quality Management System, ensuring a consistent commitment to quality. Additionally, the manufacturer’s products have achieved key industry certifications, including the BV Certificate, CE Certificate, ECM Certificate, and CCS Certificate, awarded in 2010. These certifications highlight the exceptional standards of the products we resell, providing our customers with confidence in their reliability and performance.
The Water Suction and Discharge Hose is a versatile and durable solution designed for efficient water transfer in a variety of industries. Its reinforced construction ensures strength, flexibility, and long-lasting performance in both suction and discharge operations, making it ideal for heavy-duty water handling tasks in agriculture, construction, mining, and marine environments.
Water Suction and Discharge Availability
Standard Pressure (150 PSI)
| ITEM CODE | I.D (mm) | I.D (inch) | O.D (mm) | W.P (bar) | W.P (psi) | B.P (bar) | B.P (psi) | Weight (kg/m) | Max Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| WSD019-150 | 19 | 3/4″ | 30.8 | 10 | 150 | 30 | 450 | 0.72 | 61 |
| WSD025-150 | 25 | 1″ | 36.8 | 10 | 150 | 30 | 450 | 0.89 | 61 |
| WSD032-150 | 32 | 1-1/4″ | 44.8 | 10 | 150 | 30 | 450 | 1.19 | 61 |
| WSD038-150 | 38 | 1-1/2″ | 51.4 | 10 | 150 | 30 | 450 | 1.48 | 61 |
| WSD045-150 | 45 | 1-3/4″ | 58.4 | 10 | 150 | 30 | 450 | 1.71 | 61 |
| WSD051-150 | 51 | 2″ | 64.4 | 10 | 150 | 30 | 450 | 1.91 | 61 |
| WSD064-150 | 64 | 2-1/2″ | 78.4 | 10 | 150 | 30 | 450 | 2.48 | 61 |
| WSD076-150 | 76 | 3″ | 90.8 | 10 | 150 | 30 | 450 | 3.00 | 61 |
| WSD089-150 | 89 | 3-1/2″ | 106.2 | 10 | 150 | 30 | 450 | 4.33 | 61 |
| WSD102-150 | 102 | 4″ | 119.2 | 10 | 150 | 30 | 450 | 4.90 | 61 |
| WSD127-150 | 127 | 5″ | 146.2 | 10 | 150 | 30 | 450 | 6.57 | 61 |
| WSD152-150 | 152 | 6″ | 171.6 | 10 | 150 | 30 | 450 | 7.94 | 61 |
| WSD203-150 | 203 | 8″ | 224.8 | 10 | 150 | 30 | 450 | 12.07 | 40 |
| WSD254-150 | 254 | 10″ | 280.8 | 10 | 150 | 30 | 450 | 19.75 | 12 |
| WSD304-150 | 304 | 12″ | 334.2 | 10 | 150 | 30 | 450 | 27.68 | 12 |
High Pressure (300 PSI)
| ITEM CODE | I.D (mm) | I.D (inch) | O.D (mm) | W.P (bar) | W.P (psi) | B.P (bar) | B.P (psi) | Weight (kg/m) | Max Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| WSD019-300 | 19 | 3/4″ | 30.8 | 20 | 300 | 60 | 900 | 0.72 | 61 |
| WSD025-300 | 25 | 1″ | 36.8 | 20 | 300 | 60 | 900 | 0.89 | 61 |
| WSD032-300 | 32 | 1-1/4″ | 47.2 | 20 | 300 | 60 | 900 | 1.45 | 61 |
| WSD038-300 | 38 | 1-1/2″ | 53.8 | 20 | 300 | 60 | 900 | 1.79 | 61 |
| WSD045-300 | 45 | 1-3/4″ | 60.8 | 20 | 300 | 60 | 900 | 2.05 | 61 |
| WSD051-300 | 51 | 2″ | 66.8 | 20 | 300 | 60 | 900 | 2.29 | 61 |
| WSD064-300 | 64 | 2-1/2″ | 81.2 | 20 | 300 | 60 | 900 | 2.95 | 61 |
| WSD076-300 | 76 | 3″ | 94 | 20 | 300 | 60 | 900 | 3.63 | 61 |
| WSD089-300 | 89 | 3-1/2″ | 107.8 | 20 | 300 | 60 | 900 | 4.58 | 61 |
| WSD102-300 | 102 | 4″ | 120.8 | 20 | 300 | 60 | 900 | 5.18 | 61 |
| WSD127-300 | 127 | 5″ | 149.8 | 20 | 300 | 60 | 900 | 7.73 | 61 |
| WSD152-300 | 152 | 6″ | 175.2 | 20 | 300 | 60 | 900 | 9.34 | 61 |
| WSD203-300 | 203 | 8″ | 229.6 | 20 | 300 | 60 | 900 | 15.02 | 40 |
| WSD254-300 | 254 | 10″ | 288.8 | 20 | 300 | 60 | 900 | 25.46 | 12 |
| WSD304-300 | 304 | 12″ | 339.8 | 20 | 300 | 60 | 900 | 32.20 | 12 |
Note: Specifications, pressures, lengths, and colours can be customized based on requirements.
